工业产品系列 KPX 型号

Instron 的 大载荷万能材料试验系统包括了用于拉伸和压缩测试的电子测试系统和大载荷静态液压测试系统。载荷范围从 100kN 到 2000kN 。

• 产品
• 08/10/2020
• 3.57 MB

Instron的液压平推夹具专为高载荷试验设计，能够在试样上保持恒定的夹持力，并使夹持力垂直于测试方向，不受到拉伸载荷的影响。

• 产品
• 03/15/2013
• 1.07 MB

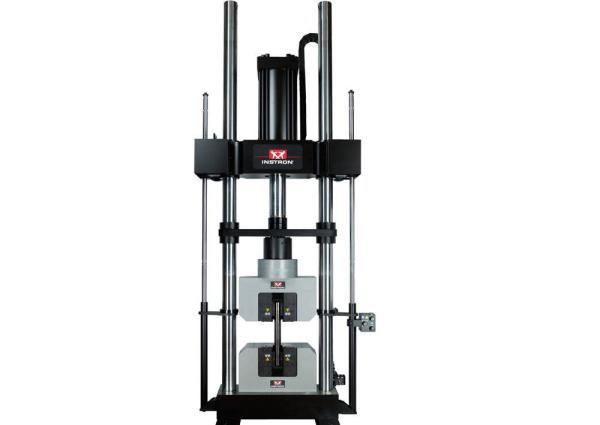

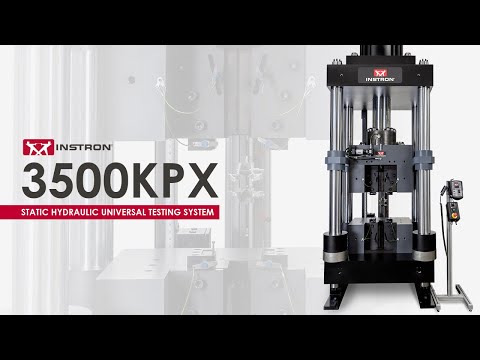

Industrial Series KPX models are designed for high-capacity tension, compression, bend/flex, and shear testing. Featuring an ultra-large single test space and adjustable crosshead options, these frames deliver exceptional flexibility for a wide range of testing applications and are available in capacities ranging from 600 kN (135,000 lbf) to 3,500 kN (800,000 lbf).

• 产品
• 01/20/2017
• 260.23 KB

Bluehill Universal 是 Instron 先进的材料测试软件，专为直观的触控交互和流畅的工作流程而设计。它提供预加载试验方法、快速设置的 QuickTest、增强型数据导出功能，以及直接连接售后服务的 Instron Connect。Bluehill 2 和 Bluehill 3 的用户可以轻松升级到最新版本，以获取更好的性能和产品可用性。

• 产品
• 02/26/2017
• 4.6 MB

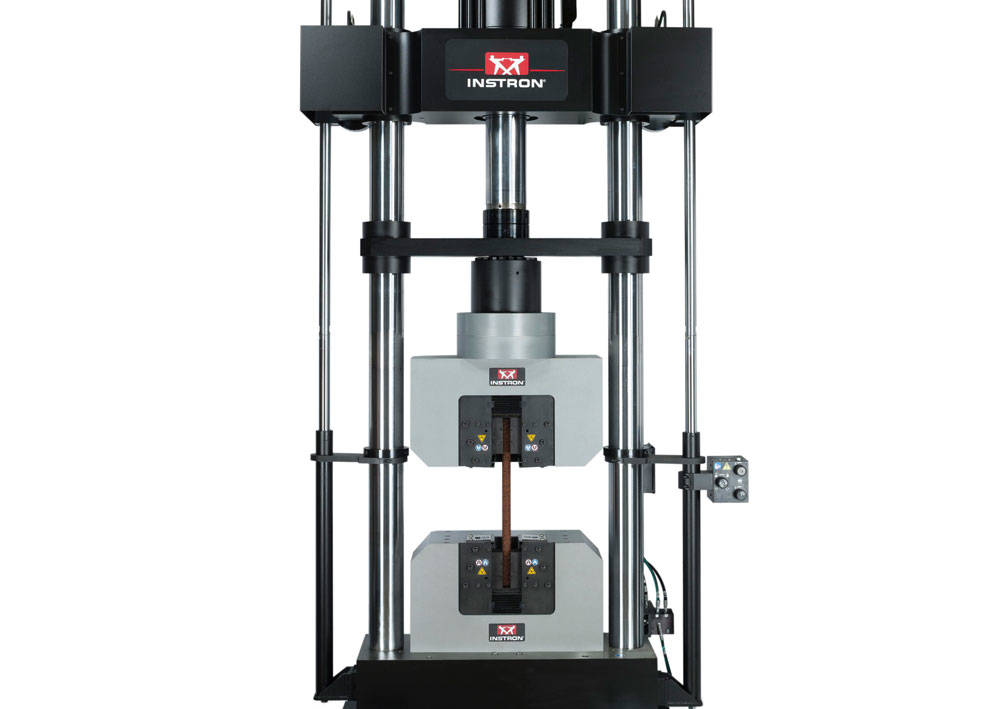

Instron® hydraulic wedge grips provide an innovative solution for high capacity testing and deliver enhanced gripping performance, usability, and operator safety.

• 产品
• 11/11/2011
• 1.03 MB

The AutoX 750 is a high-resolution, long-travel automatic contacting extensometer. It can be mounted onto any electromechanical 3300, 3400, 5500, 5900, or 6800 Series tabletop or floor model system as well as LX, DX, HDX, and KPX static hydraulic testing systems. It is well suited for applications involving plastics, metals, biomedical, composites, elastomers, and more. The AutoX has a maximum travel of 750 mm and accuracy of ± 1 µm.

• 产品
• 08/15/2013
• 1.29 MB

The information in this document is intended to aid customers in the site preparation, unpacking, lifting, and installation of the Instron Model KPX Static Hydraulic Universal Testing Systems.

• 操作手册
• 07/21/2020
• 1.03 MB

These instructions describe the function, operation and maintenance for various models of the KPX testing systems.

• 操作手册
• 07/22/2020
• 1.26 MB

These instructions provide additional information beyond what is necessary to operate the various models of the KPX testing systems. These instructions are intended for a laboratory or facilities supervisor, or Instron service personnel. These instructions assume the following: • You are an operator familiar with the operation of materials testing systems in general. • Your system has been installed in its final location according to the requirements outlined in the system’s Pre-Installation Manual. • Your system consists of a frame, a hydraulic power supply, a control unit, a computer system with an Instron materials testing software package, and any testing accessories necessary to secure the specimen in the test space. • Software test methods that are appropriate for your testing requirements are available. These instructions do not include the development of test methods within the materials testing software. This is covered in more advanced training that can be provided by Instron Service and Training departments.

• 操作手册
• 07/22/2020
• 1.43 MB

This Equipment Reference Manual has been prepared to provide customers with assembly drawings and schematics that pertain to the various models of KPX Static Hydraulic Universal Testing Systems. These drawings are provided for your use and Instron personnel use only. These drawings are the property of Instron and may be subject to return upon demand. The contents of this manual must not be copied or submitted to outside parties for use or examination.

• 操作手册
• 07/22/2020
• 2.24 MB
