Out of Production 3300 Series Universal Testing Systems

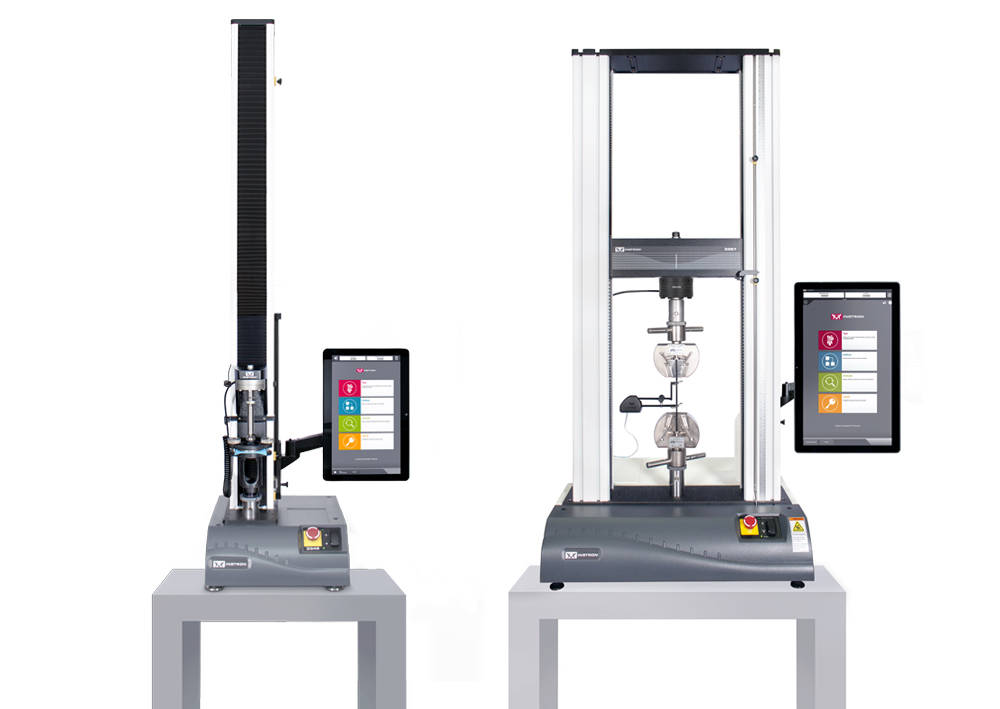

No longer in production, the 3300 Series universal testing systems were replaced by the 3400 Series testing systems in 2020. The 3340 single column, 3360 dual column table models, and 3380 floor models were first introduced in 2002 and were designed to perform tensile, compression, flexure/bend, peel, tear, shear, and cyclic tests.
- 200:1 force range (i.e. use the load cell to 0.5% of capacity with no loss of accuracy)
- Load accuracy of 0.5% of indicated load
- 500Hz data acquisition rate
- Full software control (cyclic capability optional)
- Compatible with Bluehill® Software / Instron Remote Technical Support (RTS)
- Automatic transducer recognition for load cells and extensometers
- Thousands of optional grips and fixtures
- Optional temperature chambers
- Extra height and width options available
- Full CE compliance
The 3300 Series frames remain compatible with our extensive selection of accessories, including grips, fixtures, load cells, extensometers, environmental chambers, and many other frame accessories.
| Out of Production Frames | ||||
|---|---|---|---|---|
| Model | Capacity | |||
| Single Column Table Models | ||||
| 3342 | 0.5 kN | |||
| 3343 | 1 kN | |||
| 3344 | 2 kN | |||
| 3345 | 5 kN | |||
| Dual Column Table Models | ||||
| 3365 | 5 kN | |||
| 3366 | 10 kN | |||
| 3367 | 30 kN | |||
| 3369 | 50 kN | |||
| Dual Column Floor Models | ||||
| 3382 | 100 kN | |||
| 3384 | 150 kN | |||
| 3385H | 250 kN | |||
3340 Single Column Table Frames System Support
The System Support guide details the requirements, specifications, handling instructions, installation procedures, and maintenance details.
- 操作手册
- 05/03/2016
- 546.01 KB
3340 Single Column Table Frames Operator Guide
The Operators’ Guide provides the information you need to know to start testing after the system has been installed and set up for the first time. The document provides a detailed introduction, notes on prepping the system, and information on testing specimens.
- 操作手册
- 05/03/2016
- 500.92 KB
3360 Dual Column Table Frames System Support
The System Support guide details the requirements, specifications, handling instructions, installation procedures, and maintenance details
- 操作手册
- 05/03/2016
- 525.53 KB
3360 Dual Column Table Frames Operator Guide
The Operators’ Guide provides the information you need to know to start testing after the system has been installed and set up for the first time. The document provides a detailed introduction, notes on prepping the system, and information on testing specimens.
- 操作手册
- 05/03/2016
- 466.1 KB
3380 Dual Column Floor Frames System Support
The System Support guide details the requirements, specifications, handling instructions, installation procedures, and maintenance details.
- 操作手册
- 05/03/2016
- 571.36 KB
3380 Dual Column Floor Frames Operator Guide
The Operators’ Guide provides the information you need to know to start testing after the system has been installed and set up for the first time. The document provides a detailed introduction, notes on prepping the system, and information on testing specimens.
- 操作手册
- 05/03/2016
- 628 KB
