ISO 7206-4, 7206-6, and 7206-8 인공 고관절 임플란트 보철물의 내구 및 피로시험
ISO 표준 규격은 비정상적인 경우와 정상적인 경우 모두의 피로 부하를 시험하도록 되어 있습니다.

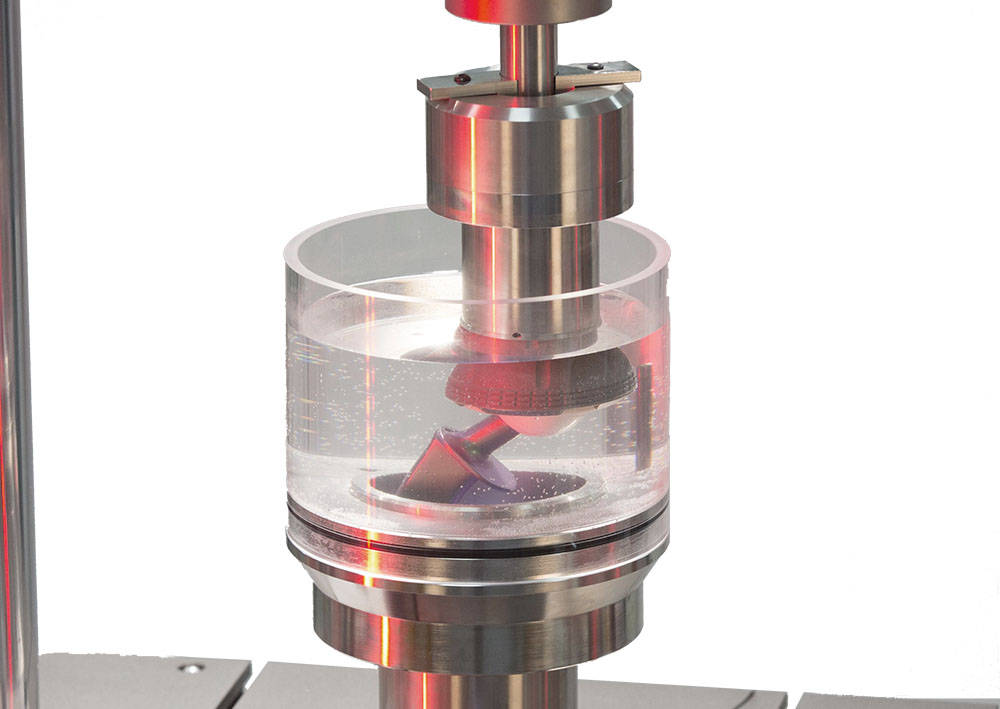

- ISO 7206-4: 근위 이완이 발생할 때의 부하를 재연합니다. 하중은 압축, 굴곡 및 비틀림 응력을 유발할 수 있도록 고관절 임플란트의 대퇴부 머리부분을 통해 가해 집니다.
- ISO 7206-6: 정상적인 생체조건 부하를 받게되는 정확히 고정된 임플란트와 더욱 일치하는 있는 임플란트 목부분의 피로를 시험합니다..
- ISO 7206-8: 비틀림을 받는 임플란트의 내구성에 대해 설명하고 있습니다.

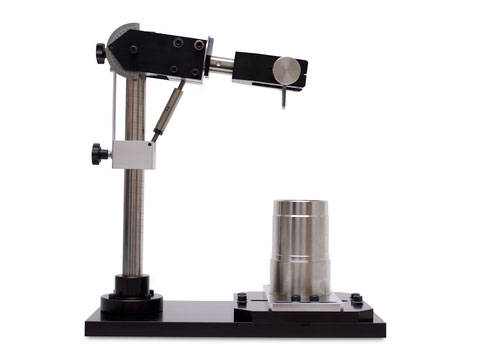

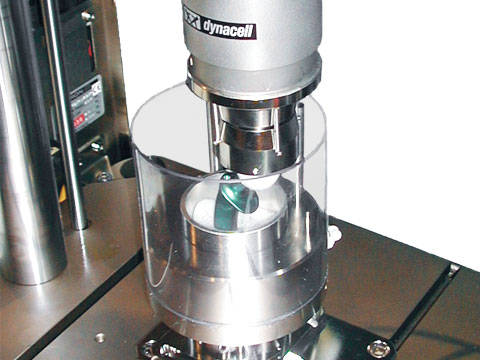

Hip Femoral Fatigue Fixture ISO 7206
The hip femoral fatigue fixture was specifically designed to meet the enhanced requirements of ISO 7206-4. The fixture simulates the fatigue loading of a hip stem during a gait cycle.
- Applications
- 05/31/2016
- 542.57 KB
ELECTROPULS® E3000 | LINEAR-TORSION 전동식 동적 피로 시험기
- 제품소개
- 03/03/2017
- 578.31 KB
ElectroPuls® E3000 Linear-Torsion All-Electric Dynamic Test Instrument
The ElectroPuls® E3000 Linear-Torsion is a state-of-the-art, all-electric test instrumentdesigned for dynamic and static testing on a wide range of materials and components. Itincludes Instron® advanced digital control electronics, bi-axial DynacellTM load cell, Consolesoftware, and the very latest in testing technology – hassle-free tuning based on specimenstiffness, electrically operated crosshead lifts, a T-slot table for flexible test set ups and a hostof other user-orientated features. Powered from a single-phase supply it requires no additionalutilities for basic machine operation (for example, pneumatic air, hydraulics, or water).
- 제품소개
- 03/03/2017
- 386.9 KB
ElectroPuls® E10000 All-Electric Dynamic Test Instrument
The ElectroPuls® E10000 is a state-of-the-art, all-electric test instrument designed for dynamicand static testing on a wide range of materials and components. It includes Instron® advanceddigital control electronics, DynacellTM load cell, Console software, and the very latest in testing technology – hassle-free tuning based on specimen stiffness, electrically operated crossheadlifts, a T-slot table for flexible test set ups and a host of other user-orientated features. Powered from a single-phase supply it requires no additional utilities for basic machine operation (for example, pneumatic air, hydraulics, or water).
- 제품소개
- 03/03/2017
- 490.57 KB
ElectroPuls E10000
- 제품소개
- 03/16/2017
- 726.44 KB
