THE CHALLENGE
Some vehicle textiles have multiple layers or backings, and must be subjected to a peel test in order to determine if adhesion forces are appropriate.
Our Solution
Instron® pneumatic side action grips are able to grip delicate foam specimens in order to perform T-peel tests. With a variety of quick-release jaw faces, these grips allow users to easily test a range of materials with a single system. The air pressure is also adjustable, allowing operators to fine tune the gripping pressure if needed.
Bluehill® Universal software contains a suite of calculations for peel testing, including industry standard calculations, such as first peak, average peel force over a given length, and even allows for custom calculations.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability
Steel cord is formed by twisting multiple strands of steel wires together to form a cord structure. This is often used as a reinforcement material in conveyor belts and radial tires for passenger cars, buses, or heavy equipment vehicles. Compared to other traditional reinforcement materials like nylon, steel cords possess superior mechanical properties, such as higher tensile strength and modulus and better heat resistance. When used as a reinforcement material in radial tires, it offers high road stability, improved steering response, and longer tire service life. Since some of the key performance indicators of tires are dependent on the reinforcing steel cord, it is important for an engineer to understand the properties of the tire cord and how it functions in a tire.
There are many challenges to account for when testing stranded wire. As stranded wire is not a consistent diameter, generally a nominal diameter is used (as defined in the product standard). As well as the irregularity of the surface, when a specimen is pulled in tension each strand will rotate. Therefore, if a clip-on extensometer is being used, it must be able to rotate. It is also necessary to have a long gauge length, so Instron offers a 600mm G.L. extensometer with 15 degrees of twist available. When stranded wire breaks, the energy released at failure is substantial, and the specimen ‘splays’ out. This may cause damage to extensometers, machine or even operators.
The challenges of testing to this standard are:
Instron's Solution:
It is important to review the pertinent testing standards in order to fully understand the test setup, procedure, and results requirements.
Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.
Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability
인장 시험은 특성화된 재료를 포함한 많은 주된 직물의 물리적인 특징을 조사할 때 유용합니다. 인스트론에서는 다양한 재료를 시험할 수 있도록 여러 가지 형태의 시편 파지법을 이용할 수 있는 광범위한 만능재료 시험기를 공급합니다.

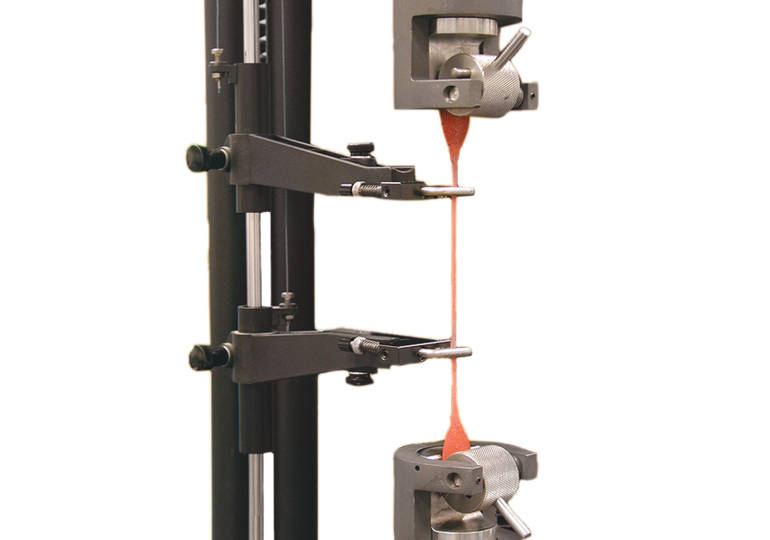

직물을 테스트할 때 우리는 이 재료에 올바른 해결책이 제공될 수 있도록 하는 2714-010 Pneumatic Cord and Yarn Grips을 사용합니다. 많은 직물과 합성 섬유와 마찬가지로, 시험 중에 시험 결과의 정확성을 저해시킬 수 있는 미끄러짐이 발생하지 않도록 하는 것이 매우 중요합니다.

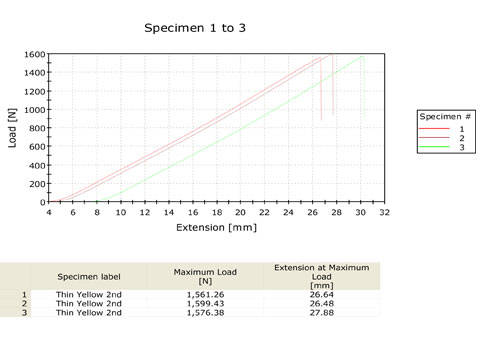

아라미드 섬유는 동일한 중량 기준의 강철이나 다른 상업적으로 이용 가능한 섬유보다 중량 대비5배 더 높은 강도를 가지고 있습니다. 아라미드 섬유는 유리 섬유와 유사한 인장 강도를 보이지만, 최소한 2배는 큰 모듈러스를 가질 수 있습니다.
아라미드 섬유의 시험에는 정확히 이러한 목적을 위해 특별히 설계되어진 일련의 공압식 그립을 제공합니다.
그러므로 특정한 시험 표준을 따르거나 독자적인 시험 절차에 따라 시험하는 여부와 관계없이, 고객의 요구사항에 맞는 올바른 해결책을 제공하기 위한 Bluehill® 3 Software modules과 함께 3300 또는 5900 시리즈의 만능재료 시험기를 추천합니다.
인장, 압축, 굽힘 및 기타 재료 특성 테스트를 위한 Instron 3400 시리즈 범용 테스트 시스템.
Instron 6800 시리즈 만능 시험기는 최고의 정확도와 신뢰성을 제공합니다. 6800 시리즈는 완전히 새로운 Smart-Close Air Kit 및 Collision Mitigation 기능이 있는 특허 출원 중인 Operator Protect 시스템 아키텍처를 기반으로 하며, 그 어느 때보다 간편하고 스마트하며 안전한 소재 시험을 가능하게 합니다.

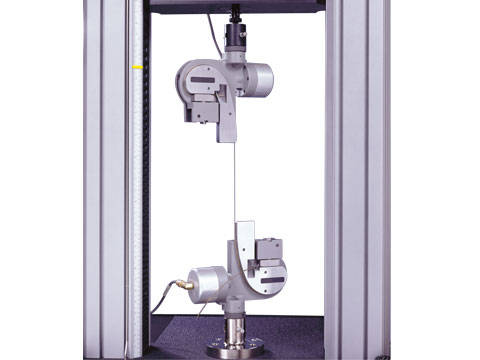

The Instron® pneumatic tire cord grips provide a convenient method for clamping tire cord and braided wire during testing.
Bluehill Universal은 직관적인 터치 상호 작용과 간소화된 워크플로우를 위해 설계된 Instron의 고급 재료 시험 소프트웨어입니다. 이 소프트웨어는 사전 로드된 시험 방법, 빠른 설정을 위한 QuickTest, 향상된 데이터 내보내기, 그리고 직접적인 서비스 통신을 위한 Instron Connect를 제공합니다. Bluehill 2 및 Bluehill 3 사용자들은 향상된 성능과 사용 편의성을 위해 최신 버전으로 쉽게 업그레이드할 수 있습니다.
Instron 3400 Series universal testing systems for tensile, compression, bend, and other material property tests.
Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.
Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.
Instron 3400 Series universal testing systems for tensile, compression, bend, and other material property tests.
Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability

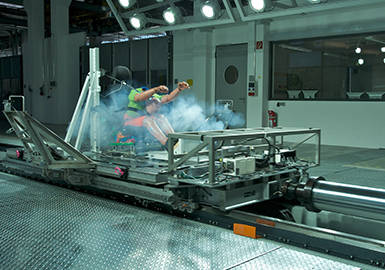

Over the past 20 years, the importance of occupant protection in the development of automobiles has greatly increased. Tighter legal requirements and consumer protection programs have led to significant innovations in the area of active and passive safety. Passive safety is mainly focused on the development of methods and guidelines that reduce the severity of injuries caused by accidents.
Instron TestMaster automated testing systems are available for tensile, flexural, and compression testing of a wide range of materials and specimen sizes.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
A wide range of new materials are being used to decrease the weight of vehicles and reduce emissions. Of these new materials continuous carbon fiber polymer composites offer great potential for producing lightweight structures, however, there are many barriers to their widespread adoption. Currently, the cost and process times of composites parts are significantly higher than those of traditional metal parts and they require new recycling techniques. Progress is being made with the development of lower cost carbon fibers and thermoplastic matrix materials that offer faster manufacturing processes and facilitate recycling.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.

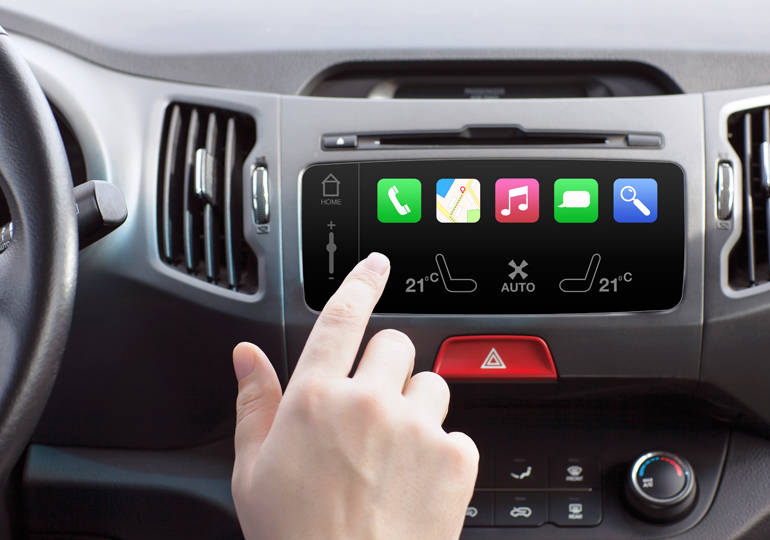

As infotainment display panels and screens are becoming standard features in many automobiles, it is important for manufacturers to understand their mechanical reliability. These displays need to last the lifetime of the vehicle, much longer than a standard electronic device. Therefore, it is relevant to study their mechanical reliability.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
Compression After Impact test (CAI) is used to define the damage resistance of composites after an Impact event. An impact on composite laminate panel may result in no visible external damage, but it may generate a dramatic reduction of compressive strength. The design of automotive parts using composite materials should consider the effects of impact on the material properties. These data can be obtained following dedicated standards (i.e. ASTM D7136M, ASTM D7136), using an Instron Drop Tower configured with CAI accessories.
AEC-Q200-005-REV (A) defines the standard for verifying the bond strength of surface mount components on finished printed circuit boards (PCBs) to understand their ability to withstand bending, flexing, and pulling forces. Electronics assembly manufacturers for automotive OEMs are interested in learning and characterizing bond strength for adhesives that are used to mount and hold the surface mount components and their leads in place on a PCB.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
The Instron® XY Test Stage is designed to accommodate the trend of testing end products or components. Within the medical device industry, many components, sub-assemblies, or end products have multiple elements, like leads, that need to be tested independently of one another. Often the elements tested are in close proximity to one another. Using the XY-Stage, the specimen is fixated on the system and testing is performed on the individual elements. The XY-Stage easily and quickly relocates the specimen so that the next element can be tested without having to reinstall the specimen. Additionally, when initial alignment is critical for successful testing, the XY-Stage provides the ability for repeatable and quick results, including applications like insertion and withdrawal testing, or precision bend testing. The general flexibility of the XY-Stage allows it to adapt almost any specimen to your universal testing systems.

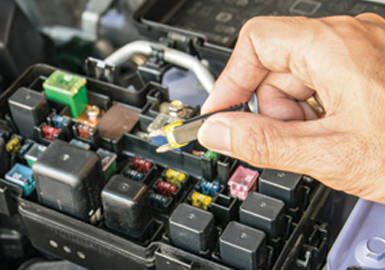

The Automotive Electronics Council (AEC) has defined standards that are critical for qualifying electrical components used in automobiles. Due to the exponential increase in applications of microelectronics in automobiles, these standards are of extreme importance. AEC-Q200-006-REV (A) defines the standard for verifying component terminal strength in order to withstand axial stresses that are likely applied from the manufacturing process of finished printed circuit boards (PCBs). Electronics assembly manufacturers and OEMs are interested in understanding the solder joint strength of leads of a surface mount device (SMD) bonded to a PCB or other substrate.
THE CHALLENGE
The standard requires a force to be applied on the component axially for 60 seconds, which results in shearing the component. This force should be applied gradually, and should not induce shock on the component.
Our Solution
Instron® offers a dedicated Die Shear Fixture that can be used in single or dual column systems to meet the AEC Q200-006 (A) standard. The fixture has the capabilities to hold a finished PCB in position and shear the target SMD. The adjustable holder of this fixture can account for the various sizes of PCBs, and the linear rail helps the operator to center the shear tool on the component. Different sizes of shear tools are offered based on the dimensions of the SMD.Bluehill® Universal software is used to create test methods as per the standard requirements.
Instron 3400 Series universal testing systems for tensile, compression, bend, and other material property tests.
Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.
Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.

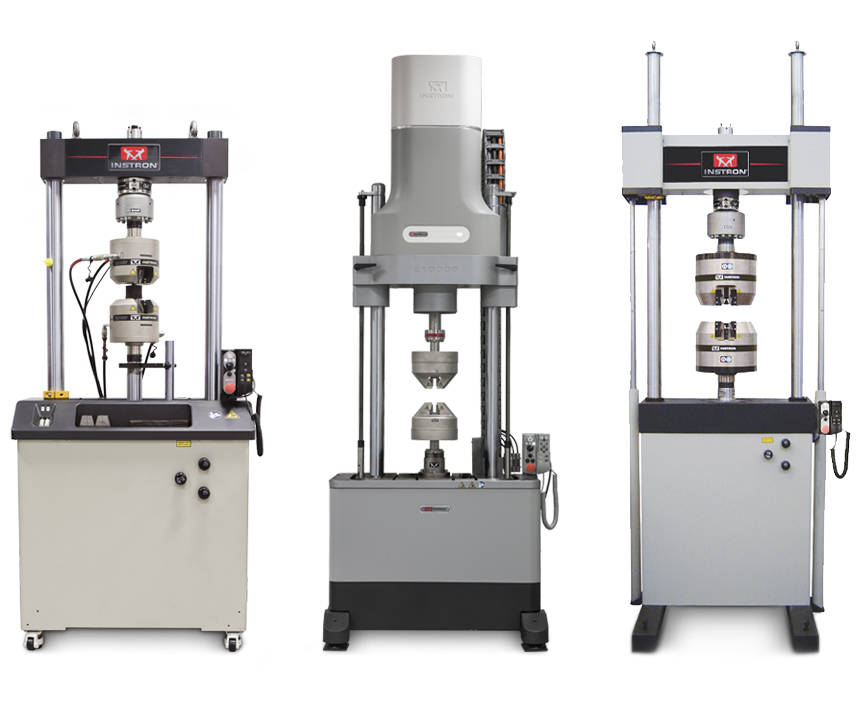

With more than ten years of running tests over billions of cycles, ElectroPuls systems are the established materials testing machines using patented linear motor technology. With model capacities up to 20 kN, ElectroPuls systems offer slow-speed static testing and high-frequency dynamic fatigue testing with hundreds of hertz capability. The Linear-Torsion models feature a patented actuator for bi-axial tests on materials and components.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
WaveMatrix is the industry’s market leading software suite for dynamic and fatigue testing that is trusted by scientists, engineers and quality managers worldwide. The latest version of the software builds upon the potential of its predecessors and introduces new features such as Test Review, Specimen & Test Inputs and Security. Developed to work seamlessly alongside the latest PC software and firmware, WaveMatrix3 will save time, enhance productivity, improve confidence in the results being produced and help to futureproof facilities needing to adapt to new technologies. Designed for customers, with the support of customers, WaveMatrix3 guarantees that when advancing the boundaries of material testing; the difference is measurable.
In the automotive sector, development in chassis and body of vehicles is driven by two main aspects, safety, and lightweighting. As the body is the first point of impact during a car crash, modern designs have incorporated features such as crumple zone to absorb most of the initial impact, reducing the force that will reach the passengers. With this in mind, it is essential to understand material behavior under high strain rate, especially during development cycles of metals, alloys, and composites that may be used in chassis or body design. On the other hand, lightweighting provides better fuel economy for the car, decreases component wear and hence provide a much more competitive product overall. Therefore, characterizing how material properties change under high strain rate is important in order to find the optimum design maximizing safety and lightweighting.
Sheet Metal High Strain Rate Testing
The Challenge
When considering the crashworthiness of components, testing in high strain rates is essential. As investigated by numerous research, mechanical properties of materials differ drastically under quasi-static conditions and high strain rates. Therefore, accurate data on strain rate dependence of material behavior will provide more realistic computer simulation and evaluation of crashworthiness of structures, whether it is during the development of new alloys or testing automotive components.
Our Solution
To meet the challenges of high strain rate testing, Instron has been the market leader in manufacturing high strain rate testing machines for over 20 years, advancing high strain rate research and testing capabilities on metals with suitable technologies. For testing metals and high-performance alloys, Instron offers a range of VHS systems that can perform tests that will be suited to your application up to a maximum test velocity of 25 m/s, which translates to testing conditions from quasi-static up to a strain rate of 1000/s. Instron also offers fast jaw or slack rod tensile gripping solutions to ensure gripping at test velocity and DIC integration that will provide non-contact strain measurement with the capacity for dedicated strain gauge channels.
8862 systems have been the industry choice for Low Cycle Fatigue (LCF) testing for decades and are now fully integrated with our latest controller platform. Instron® has developed this system specifically to address the challenges of reverse-stress Low Cycle Fatigue and Thermomechanical Fatigue (TMF) testing. The unique actuator technology utilizes an all-electric, backlash free, ball-screw drive eliminating the need for hydraulic infrastructure to support the machine.
The Automotive Testing Solutions brochure is a 36-page, applications-focused, and standards-based brochure. Important standards such as ASTM D412, ISO 37, and ISO 11443 are covered in a detailed testing challenge and solution format. The brochure addresses the most prominent and widely-used standards in the materials testing for the automotive industry.
In the automotive field, the safety of passengers is key and many research and development efforts have been put to ensure each critical safety component is tested and up to standard. Seatbelts play a big role in car safety as it decreases the momentum of passengers, reducing the force of secondary impacts with interiors and prevents passengers from being ejected from a vehicle in a crash or a sudden stop.
Learn more about our automotive solutions
When working in automotive R&D, awareness of how various materials act at ambient temperature as well as normal operating temperature is important. Many original equipment manufactures have unique temperature requirements that all components need to achieve, for example: -30oC to 80oC. However, engine and transmission components get considerably hotter. It is extremely important to subject the material to these temperatures during testing to understand their performance.
Learn more about our automotive solutions
Knowing the formability of metals is absolutely critical in the manufacture and development of automobiles, typical performance indicators for the formability properties are the plastic strain ratio (r-value) and strain hardening exponent (n-value). Bend testing is also vital in drawing conclusions about the forming behavior and the susceptibility to failure of metallic materials during the forming processes dominated by bending deformation but also during crash deformation.
Learn more about our automotive solutions
When working in automotive R&D, awareness of how various materials act at ambient temperature as well as normal operating temperature is important. Many original equipment manufactures have unique temperature requirements that all components need to achieve, for example: -30oC to 80oC. However, engine and transmission components get considerably hotter. It is extremely important to subject the material to these temperatures during testing to understand their performance.
Learn more about our automotive solutions

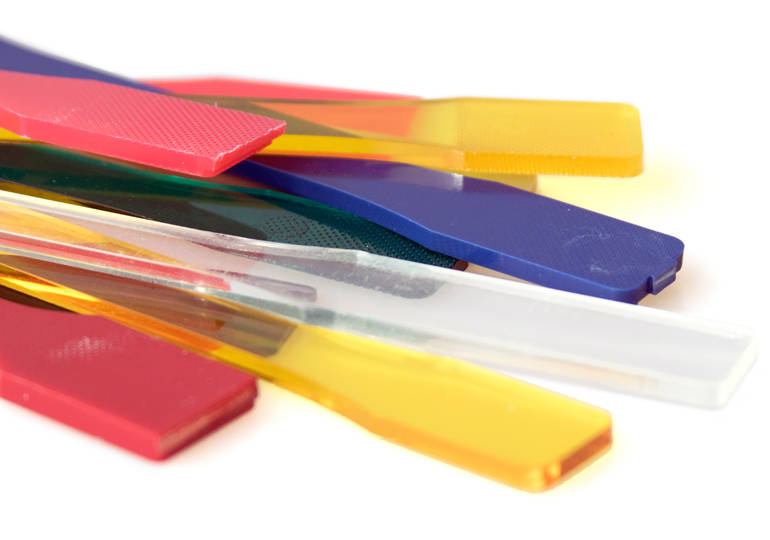

Plastics have proven to be the predominant material for developing durable, highly customizable, and cost-effective interior components. Corrosion resistant properties allow finished components to last longer with little to no maintenance. The versatility of plastic allows automotive designers to customize interiors while maintaining low costs. Modern manufacturing processes allow a vast array of colors and textures to create an aesthetically pleasing environment for the passengers. Additional benefits include reduced weight and high vibration dampening, increasing the ability to meet environmental regulations.
Globally, there are increasing efforts to reduce the weight of automobiles, increasing fuel efficiency which aids in the reduction of emissions. Various grades of steel have been the predominant material used for manufacturing automobiles chassis' and body. A new generation of advanced high-strength steels (AHSS) are being developed and produced to maintain the automotive industry’s demand for steel.

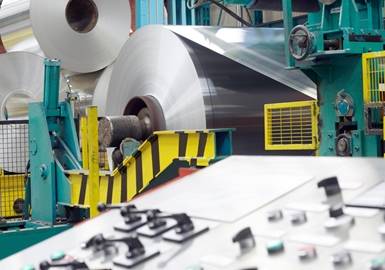

Despite this, automotive manufacturers are now also working with aluminum producers to increase the percentage of aluminum used in the production of automobiles. Aluminum offers low density, excellent formability, corrosion resistance, and high strength.
While the world is moving towards touch technology where we interact with swipes, knobs and buttons are still very common in the interior of automobiles. Knobs and buttons enable the driver to keep their eyes on the road and use haptic sensing to change the radio, switch on the air conditioning, turn on their seat warmer etc. Haptic sensing refers to a user applying a force or touch to an object and that object applying a force, vibration, click, or motion back to the user. For example, when a driver turns their windshield wipers on there is a mechanical stop accompanied with a click that notifies the driver of the different windshield wiper level.
Learn more about our automotive solutions

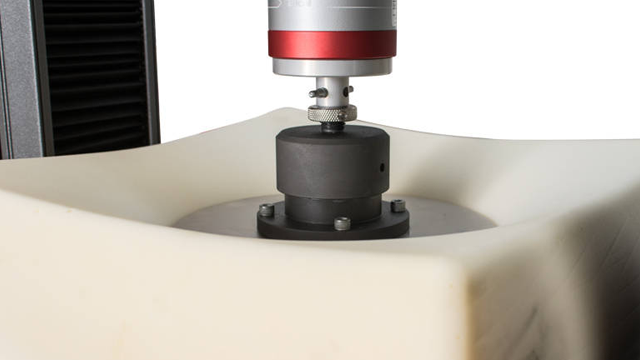

Car manufacturers utilize foam materials primarily for seating purposes. The consumer is continuously interacting with the material and it's material properties can directly affect the consumer's ownership experience. As such, manufacturers perform rigorous testing of foam materials to ensure their safety, durability, and comfort. Various tests are performed in order to characterize the material's properties as they relate to the support profile and long-term consumer comfort.
In the automotive sector, textiles must be aesthetically pleasing but also be durable to survive years of abuse. Automobile owners will see the interior of the vehicle every time they enter, so the importance of aesthetics cannot be understated. The automotive market is incredibly competitive, so any advances in the material technology of these textiles can provide a substantial advantage.
Learn more about our automotive solutions
Wheels are safety-critical components of any vehicle and are exposed to severe loads over their lifetime. Their reliability can only be safeguarded by performing tests under laboratory conditions which resemble actual loading conditions as closely as possible. Based on an idea from the Fraunhofer Institute for Structural Durability and System Reliability LBF, the Biaxial Wheel Test Facility has been completing validations since the early 1980´s. This test procedure became a standard at most European wheel producers and was also introduced as SAE wheel standard J 2562, in 2003. Standardized load profiles like Euro-Cycle or AK-Cycle had been developed which could reduce the test time to a minimum by transforming damage content of the original design spectra of 300,000 km to an accelerated one of only 10,000 km. Today, an additional method for the generation of a load profile is available. By using the “Hayes Lemmerz” method the ZWARP’s control parameter could be determined directly from the wheel forces without the need for the long detour of a strain gauge measurement.
Learn more about our automotive solutions
Learn more about our automotive solutions

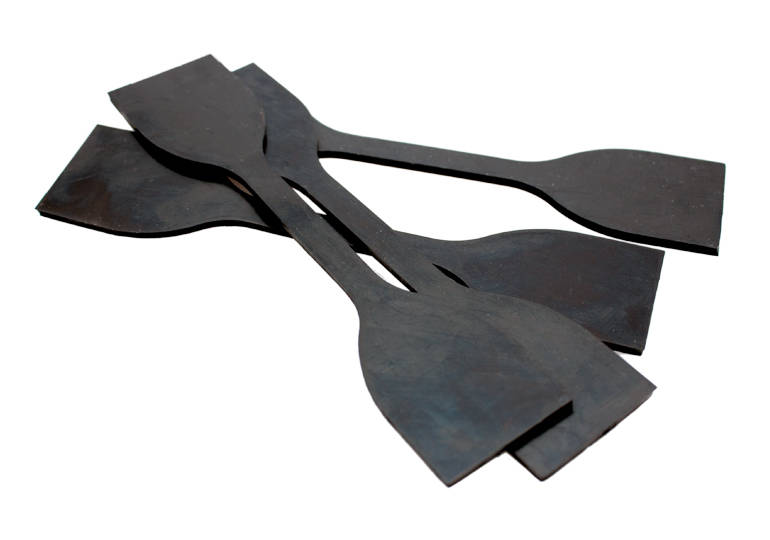

The elongation of elastomers is critically important to tire manufacturers, as this property helps predict how tires may behave during use. This property, however, can create challenges in testing.
Learn more about our automotive solutions
Not all human interactions with automotive components are purely axial and always vertical. If only using a vertical, axial frame, this can create a challenge for the fixture design or prove to be impossible to test in situ. It is important to test final components in the way that the end user will interact with them.
The automotive industry remains one of the most common and vulnerable to impact events. Depending on the component, impact damage can have a minor effect on appearance or lead to a major failure in vehicle safety. Both car assemblers and OEM part suppliers must comply with strict safety standards in order to produce high-quality products. Automotive test standards and regulations place an emphasis on impact performance of assemblies and components.
Learn more about our automotive solutions
Learn more about our automotive solutions
Learn more about our automotive solutions

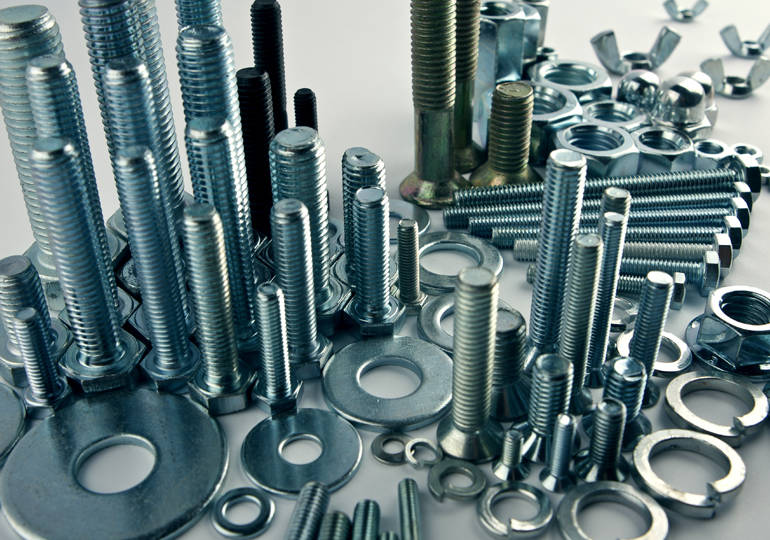

In the manufacture of automobiles, metallic bolts are used in large volumes ranging in application from high strength required for structural assembly to securing lightweight parts to the vehicle. Whatever the application they are used for, testing is critical to determine if they will be suitable for the application and/or to ensure they are meeting the quality standard.
Learn more about our automotive solutions

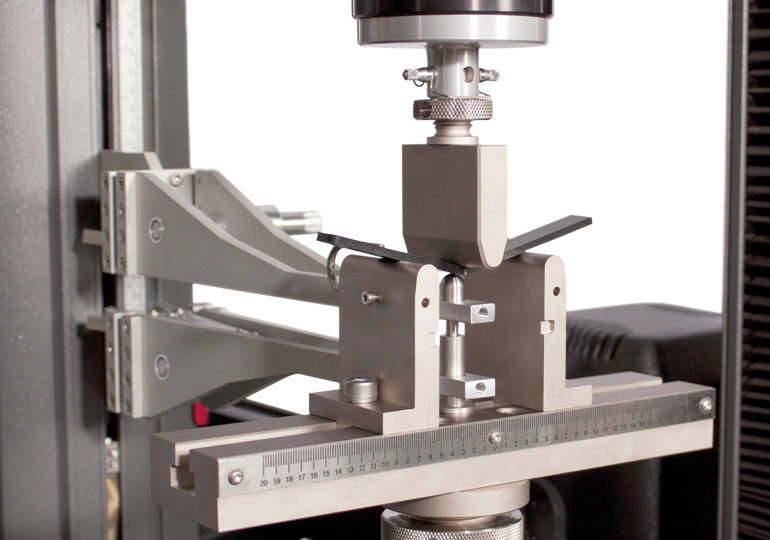

As more and more components of cars are made using plastic, testing must be done to ensure that different plastic components will stay bonded together. From dashboards to gas caps, polymeric materials ranging from nylon to polypropylene can be found throughout vehicles. Plastic welding techniques such as vibration and laser welding are used to join different plastic components, in addition to traditional adhesive methods. To ensure that the bonds are sufficiently strong, tensile testing can be performed both during product development and quality control.
As the drive for light weighting increases the range of materials used in automobiles, the requirement for reliable ways of joining these materials grows in importance. Adhesive joining technology is capable of joining dissimilar materials and can offer improved performance over traditional methods in many situations, however, careful qualification and quality controls are needed to ensure reliable results.
