ElectroPuls E3000®

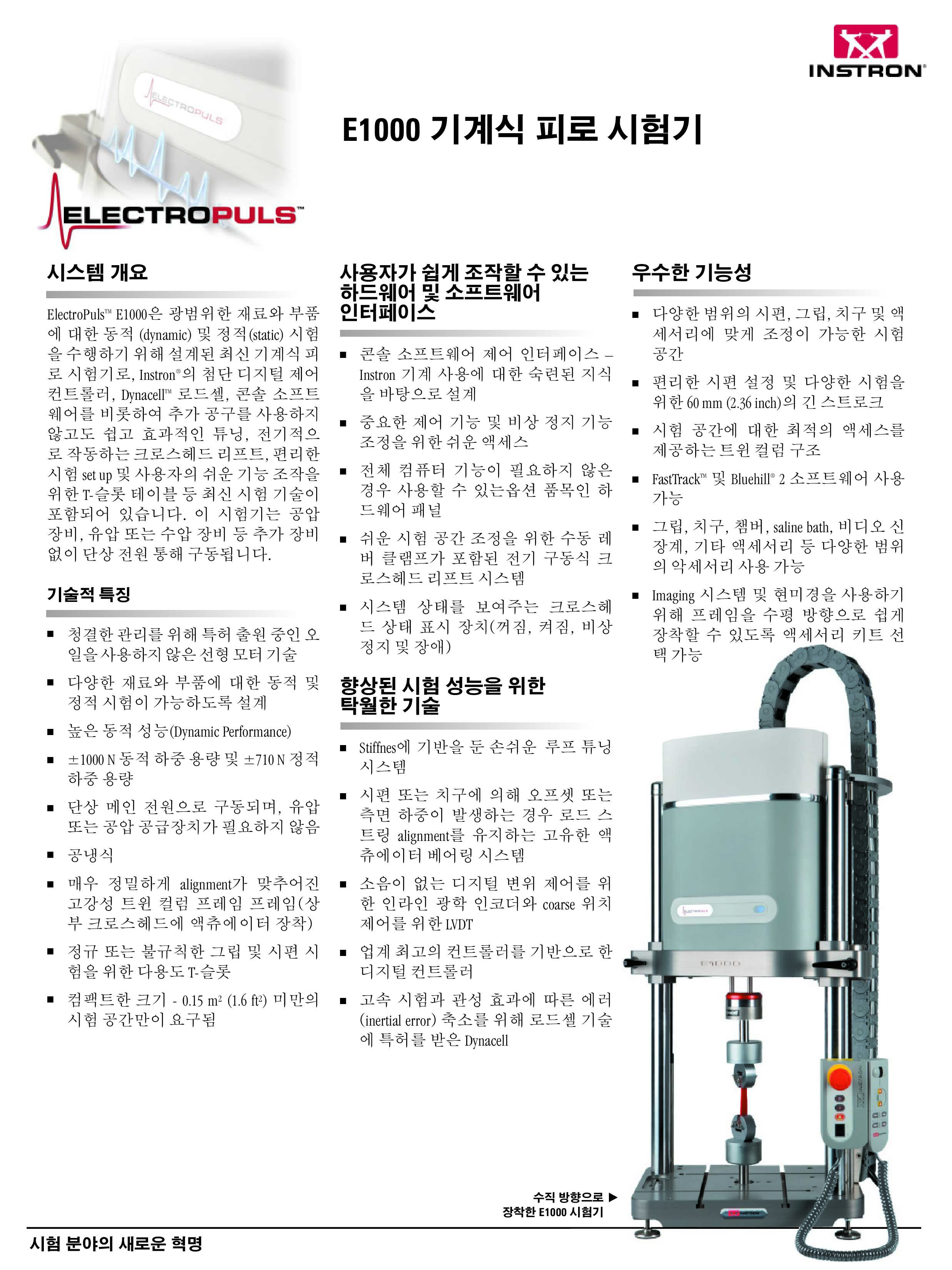

ElectroPuls E1000 시험기

ElectroPuls E1000 기계식 피로시험기는 광범위한 재료와 부품에 대한 동적(dynamic) 및 정적(static) 시험을 수행하기 위해 설계된 최신 기계식 피로 시험기입니다. +/- 1000N의 dynamic 하중 용량과 +/- 710N의 static 하중 용량을 지원하는 이 시험기는 시편 강성(stiffness)에 기반을 둔 손쉬운 튜닝이 가능하며, 전기적으로 작동하는 크로스헤드 리프트, 편리한 시험 set up을 위한 T-슬롯 테이블 등 최신 시험 기술이 포함되어 있습니다. 이 시험기는 추가적인 utility가 필요 없으며 편리하게 단상전원에 의해 구동됩니다.

Servohydraulic Brochure

Instron® is a supplier of a wide variety of mechanical testing equipment in almost every aspect of industry and academia. From quality control through to high-end research and development, we support customers in their pursuit of high quality, long-lasting products. As well as a full range of fatigue testing equipment, you can ask your Instron representative for more information about almost any testing application.

Spinal Implants

The Instron® spinal fixture is designed to meet ASTM F1717-12 requirements. In accordance to the standard, the UHMWPE blocks
are attached to the spinal fixture. The design of the blocks can differ, according to the clinical application at the intended spinal
location. The way that the blocks are connected to the fixture allow a degree of freedom when performing bending compression,
bending tensile, and torsional testing.

8874 Servohydraulic Fatigue Testing System

The Instron® 8874 is a compact tabletop axial-torsion servohydraulic testing system that meets the challenging demands various static and dynamic tests requires. The system carries out axial, torsion, or combined axial-torsion tests. With the actuator in the upper crosshead and a lower t-slot table, the 8874 makes an ideal platform for testing a variety of medical devices, biomaterials, advanced materials, and other components testing.

8803 Servohydraulic Fatigue Testing System

The Instron® 8803 is a versatile servohydraulic fatigue testing system that performs static and dynamic tests on materials and
components up to 500 kN. 8803 systems provide complete testing solutions to satisfy the needs of advanced materials
and component testing, and are ideally suited for fatigue testing and fracture mechanics. With a large number of configurations
and options, including lower t-slot tables, the 8803 makes an ideal platform for any laboratory.

8801 Series Servohydraulic Fatigue Testing Systems

The Instron® 8801 is a compact servohydraulic fatigue testing system that meets the challenging demands of various static and dynamic testing requirements. 8801 systems provide complete testing solutions to satisfy the needs of advanced materials and component testing, and are ideally suited for fatigue testing and fracture mechanics. The compact design of the 8801 frame makes it ideal for installation within any laboratory environment, generally without the need for strengthened floors or raised ceiling heights.

Dynamic Calibration Kit

The dynamic calibration kit comprising an instrumented specimen and a dedicated application software can be used to verify calibration of both force and deformation measurement devices used in fatigue testing.

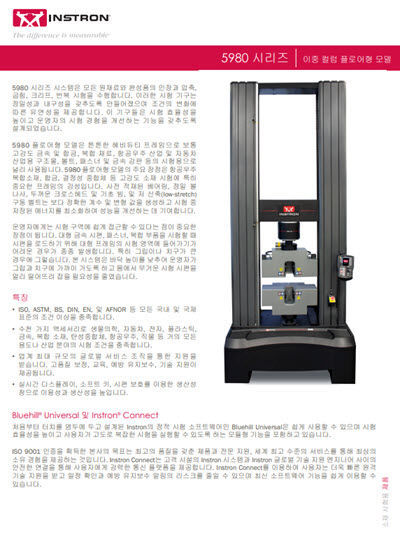

기계적 시험을 위한 5980 플로어 모델 시리즈

5980 플로어 모델은 고강도 금속 및 합금, 첨단 복합재, 항공우주 및 자동차 구조물, 볼트, 패스너, 판강 시험에 일반적으로 사용되는 중량물용 만능 재료 시험 시스템입니다. 최대 600 kN까지 시험할 수 있습니다.

The Ultimate Guide to Lightweight Materials and Parts Testing in Automotive and Aerospace

This guide will give materials engineers and scientists working in these industries valuable insight into the latest drop weight impact testing methods and technology. It will provide you with useful guidance on how to make composite materials and parts testing simpler, faster, and more reliable, which is key to minimising disruption and optimising the time to market.
