Composite Test Fixtures ASTMC297
ASTM C 297 describes a method of determining the bond strength between the facing and core of a sandwich core panel or the strength of the core itself, if the bond strength between the facing and the core is suffi ciently strong. The specimen is bonded to thick loading blocks and then subject to
tensile loading applied via the blocks.
제품소개 06/15/2011 81.92 KB
CEAST 9300 Series
Impact resistance is one of the most important properties for component designers to consider, as well as the most difficult to quantify. Impact resistance is a critical measure of service life and more importantly these days, it involves the perplexing problem of product safety and liability. With the combined experience of Dynatup® and CEAST, Instron® has more than 80 years experience in designing impact testing systems to simulate real-life impact conditions.
제품소개 04/19/2011 1.72 MB
Heavy-Duty Load Frame Support Table
The 2910-056 heavy-duty load frame support table optimizes the performance of tabletop testing systems by providing stability and increased safety. The support table maintains a level working surface, distributes the weight of a dual column electromechanical tabletop load frame, and establishes improved ergonomic conditions for users.
제품소개 10/25/2010 255.16 KB
S572x Series Compression Platens with integral spherical seat
During the application of a small preload, the spherical seated compression platen provides the self-alignment required to accommodate compression specimens which have surfaces that are not completely parallel.
제품소개 05/11/2010 713.32 KB
XY Test Stage
The Instron® XY Test Stage is designed to accommodate the trend of testing end products or components. Within the medical device industry, many components, sub-assemblies, or end products have multiple elements, like leads, that need to be tested independently of one another. Often the elements tested are in close proximity to one another. Using the XY-Stage, the specimen is fixated on the system and testing is performed on the individual elements. The XY-Stage easily and quickly relocates the specimen so that the next element can be tested without having to reinstall the specimen. Additionally, when initial alignment is critical for successful testing, the XY-Stage provides the ability for repeatable and quick results, including applications like insertion and withdrawal testing, or precision bend testing. The general flexibility of the XY-Stage allows it to adapt almost any specimen to your universal testing systems.
제품소개 08/21/2009 437.17 KB
ISO-7886-1 규격용 주사기 시험용 고정 장치 | 카탈로그 번호 2870-003
2870-003 주사기 시험용 고정 장치는 멸균 일회용 피하 주사기에 대한 ISO 7886-1 부속서 G의 시험 요구 사항을 충족하도록 설계되었습니다.
제품소개 08/10/2009 375.77 KB

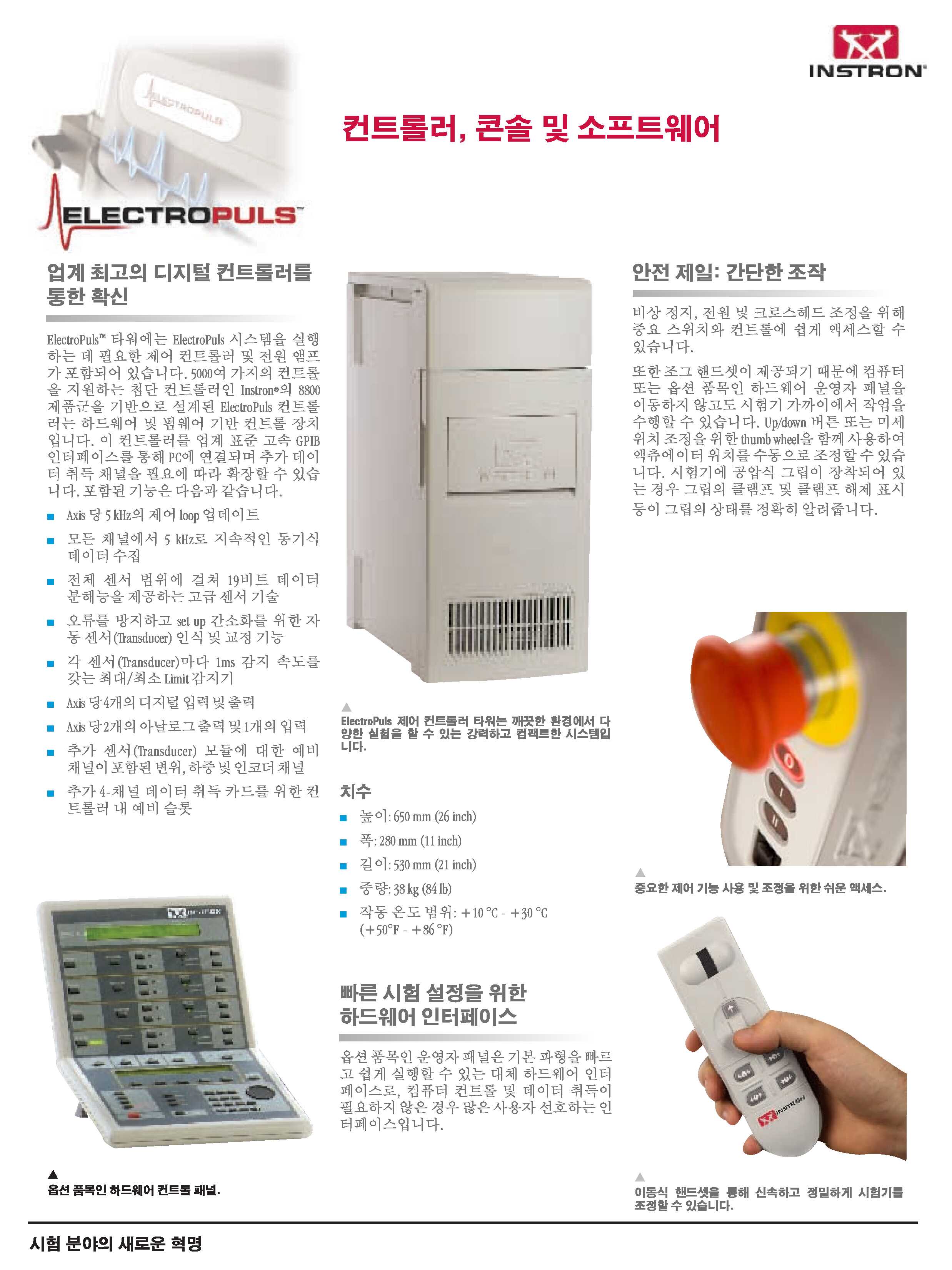

ElectroPuls 컨트롤러, 콘솔 및 소프트웨어
ElectroPuls 타워에는 ElectroPuls 시스템을 실행하는 데 필요한 제어 컨트롤러 및 전원 앰프가 포함되어 있습니다. 첨단 컨트롤러인 Instron의 8800 제품군을 기반으로 설계된 ElectroPuls 컨트롤러는 하드웨어 및 펌웨어 기반 컨트롤 장치입니다. ElectroPuls 컨트롤러는 업계 표준 고속 GPIB 인터페이스를 통해 PC에 연결되며 추가 데이터 취득 채널을 필요에 따라 확장할 수 있습니다.
제품소개 07/30/2009 937.5 KB
High-Stiffness Table for ElectroPuls Test Instruments | 1300-311 & 1300-315
High-Stiffness Support Table for ElectroPuls E1000 and E3000 tabletop test instruments.
제품소개 07/22/2009 269.36 KB
Bend Test Fixtures For Wood | 2820-04x
Bend tests provide a quick and simple way to determine the strength and deformation properties of wood and timber products. The test is also particularly relevent in this application because wood is frequently used in the form of beams where resistance to bending is an important parameter. A range of fixtures is available to cater for various specimen sizes and strengths. All fixtures can be equipped with a range of optional support rollers some of which feature articulation to cater for warped specimens.The range of fixtures is ideal for tests on MDF and fiberboard as well as natural timber.
제품소개 11/19/2008 622.68 KB
2632 Series High Temperature Extensometers
The Instron strain-gauged extensometer measures small changes in length of test specimens at very high temperatures. It has been developed in conjunction with a number of advanced programs throughout the world investigating the properties of materials including alumina, silicon carbide, silicon nitride, carbon/carbon composites and other advanced ceramics.
제품소개 08/19/2008 245.98 KB
