Not sure how to find your serial number? You can look up its location here based on the model number of your system.
| Model Number | Location on Machine |
|---|---|
| Mini 44/55 | Serial Number is on the sheet metal behind moving crosshead |
|
1000 1011 |
Serial Number is on the back of frame below console |
|
TM 1101 1102 TT 1114 1115 1116 |

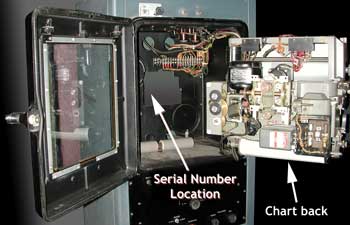

Open Recorder Platen Assembly - Serial Number is on the back panel of recorder |
| 1122 | Open motor door on left side of frame - Serial number is on the frame near motor |
|
1123 1125 1127 1128 |
Serial Number is on the back of frame located where cables are connected to frame |
|
1130 1131 1132 |
Lift recorder Platen Assembly - Serial Number is on the right panel |
| 1137 | Serial Number is on the tip-out panel on right side of frame |
| 1350 | Serial Number is on the back of frame |
| 2150 | Serial Number is on the back of frame |
| 3300 Single Column | Serial Number is on the right of column looking from the front, also on the back |
| 3300 Dual column | Serial Number is behind motor near back right |
| 3342 |
Serial Number is on the top of base near rear middle |

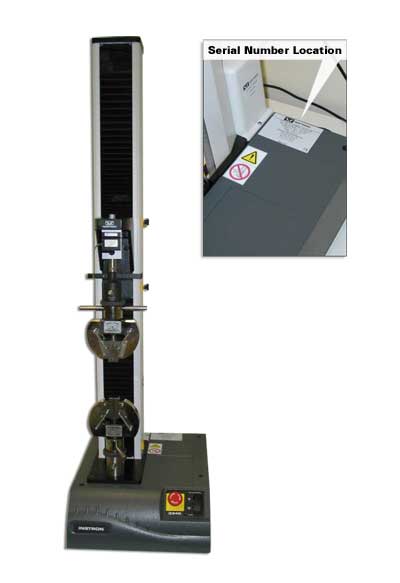

| 3345 |
Serial Number is on the top of base near rear middle |

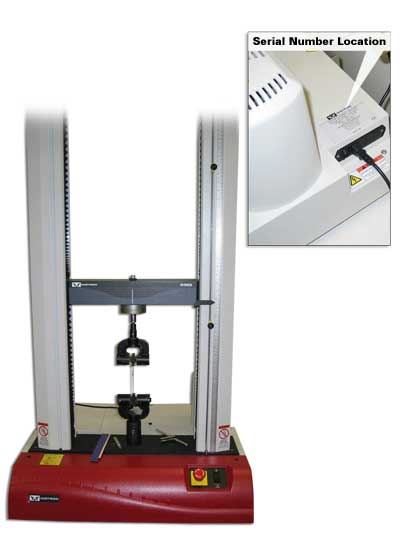

| 3365 |
Serial Number is on the rear, near motor |
| 34SC | When looking at the frame, back right corner above the power input |
| 34TM | When looking at the frame, back right corner, above the power input |
|
4201 4202 |
Serial Number is on the back of frame - left side looking from back |
| 4204 | Serial Number is on the top of frame base on right side looking from front |
| 4206 | Serial Number is on the tip-out panel on right side of frame looking from front |
| 4208 | Serial Number is behind right column on top of the base of frame looking from front |
| 4210 | Serial Number is behind right column on top of the base of frame looking from front |
|
4301 4302 |
Serial Number is on the back of frame below console |
| 4411 | Serial Number is on the back of moving crosshead |
|
4442 4443 4444 |
Serial Number is on the back of motor cover located on back of frame |
|

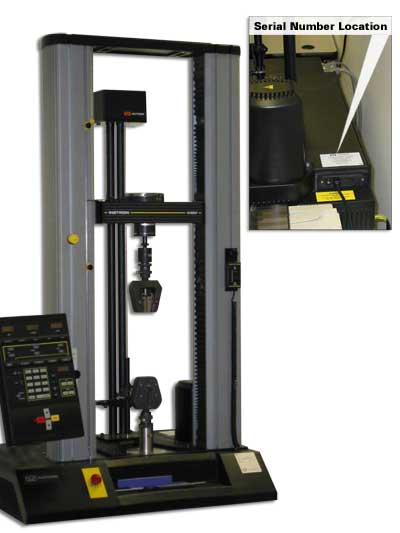

4464 4465 4466 4467 4469 |
Serial Number is on the back right side of frame above the input cable |
|
4481 4482 4484 4485 |
Serial Number is on the right side of frame above the power cable |
|
4501 4502 |
Serial Number is on the back of frame |
|
4505 4507 |
Serial Number is near base of right column cover looking at machine from back |
| 5500 Table | Serial Number is on the right side of base looking from the front |
|

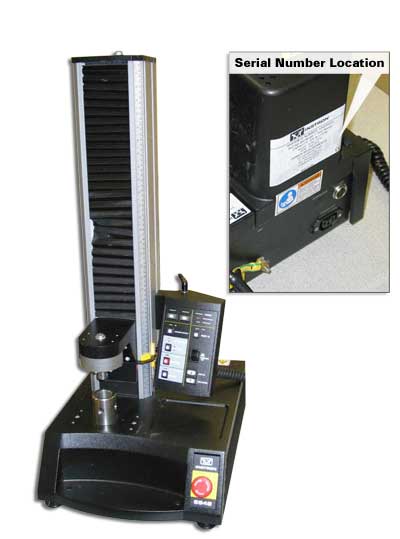

5542 5543 5544 |
Serial Number is on the back of motor cover located on back of frame |
|
5564 5565 5566 5567 5569 |
Serial Number is on the back right side of frame above the input cable |
|

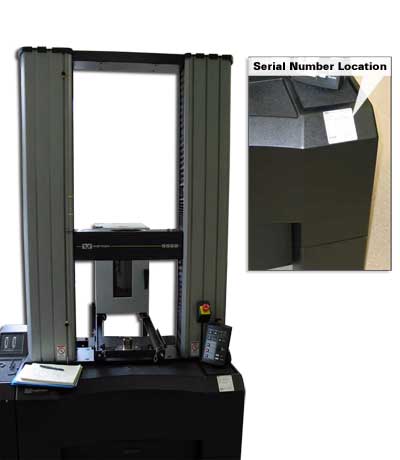

5581 5582 5584 5585 |
Serial Number is on the right side of frame above the power cable |
|
5942 5943 5944 |
Serial Number is on the left side of the crosshead and the right rear corner of the machine base |
|

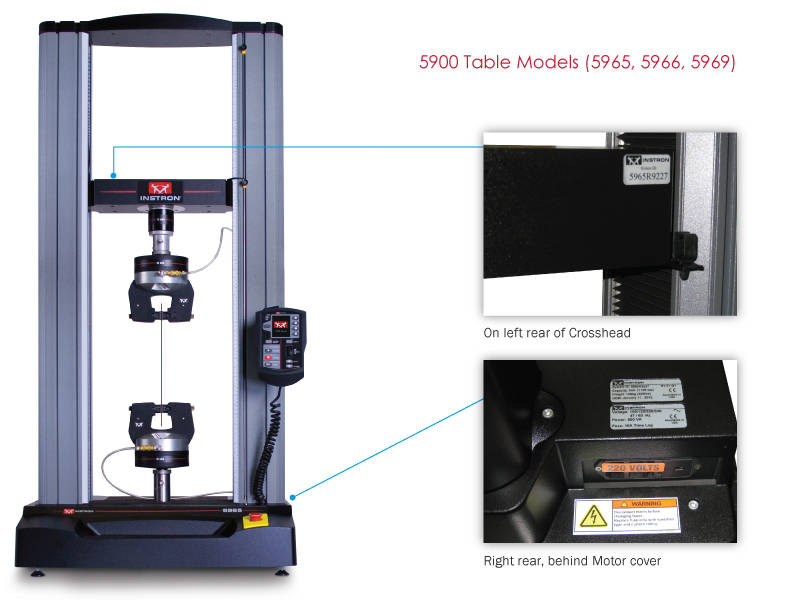

5965 5966 5967 5969 |
Serial Number is on the left side of the crosshead and at the right rear behind motor cover View Serial Number Location on These Machines |
|

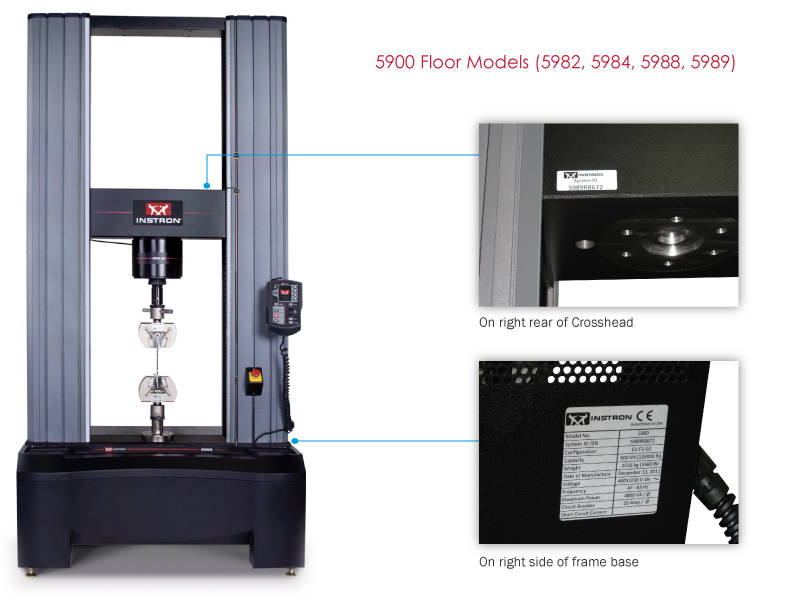

5982 5984 5985 5988 5989 |
Serial Number is on the right rear of the crosshead and on the right side of the frame base |
| 68SC | When looking at the frame, back left, above the electronics module (where you plug in a load cell) |
| 68TM | When looking at the frame, back right, above the power input |
|
8501 8502 8503 8504 8506 |
Serial Number is on the back of frame on left looking at the frame from the back |
| 8511 | Serial Number is on the back of frame base |
| 8516 | Serial Number is near top of left frame leg looking from back of frame |

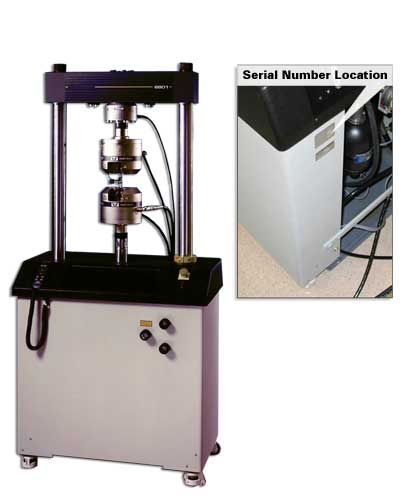

| 8801 |
Serial Number is on the top left of base from back of frame |

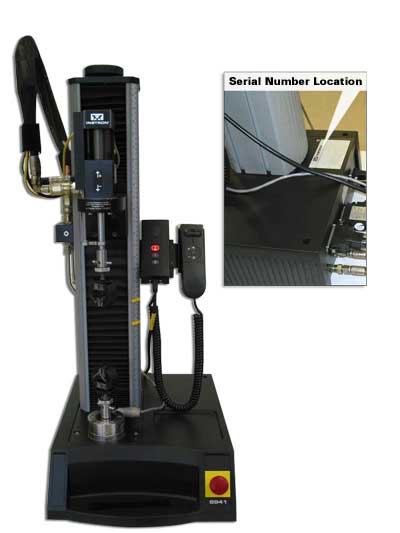

| 8841 |
Serial Number is behind frame above power cable |

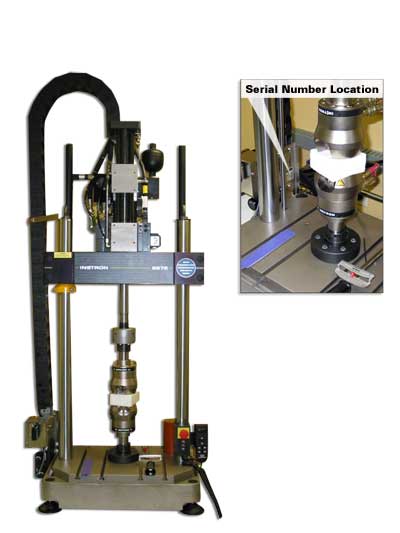

| 8872 |
Serial Number is near inside base of left column |
| 9250 | Serial Number is on the rear side, six inches from top in black area |
| Microtesters | Serial Number is on the top right of electronics tray and the bottom right of the frame |
Serial Number is near inside base of left column
