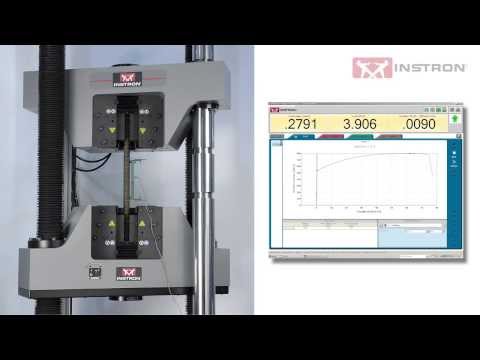

Industrial Series HDX Models
Diseñados para ensayos de tracción, compresión, flexión y cizalladura de alta capacidad, los modelos HDX se accionan mediante un sistema de bombeo hidráulico que mueve el conjunto del pistón para proporcionar las fuerzas necesarias para el ensayo.
- El versátil diseño del bastidor proporciona dos espacios de ensayo para que los usuarios puedan cambiar rápidamente entre ensayos de tracción y de compresión sin tener que quitar pesados útiles de ensayo.
- El diseño de columna con muescas permite cambiar la posición de la cruceta superior.
- Las crucetas de frontal totalmente abierto opcionales facilitan la inserción y eliminación de muestras para una mayor productividad y seguridad.
- La célula de carga de bandas extensiométricas mide la fuerza directamente la fuerza aplicada a la probeta.
- Un pedestal colocado por el usuario ofrece una ubicación cómoda del panel de productividad y los controles de la bomba hidráulica.
- Los elementos electrónicos de control avanzados proporcionan reconocimiento y calibración automáticos de los transductores, garantizando que se usa el instrumento adecuado y que los datos son fiables.
- Los paquetes de software de ensayo basados en Windows® proporcionan la máxima facilidad de funcionamiento y flexibilidad.
- Fuente de alimentación de presión variable que proporciona presión bajo demanda, lo que reduce la generación de calor y el consumo de energía durante el funcionamiento.

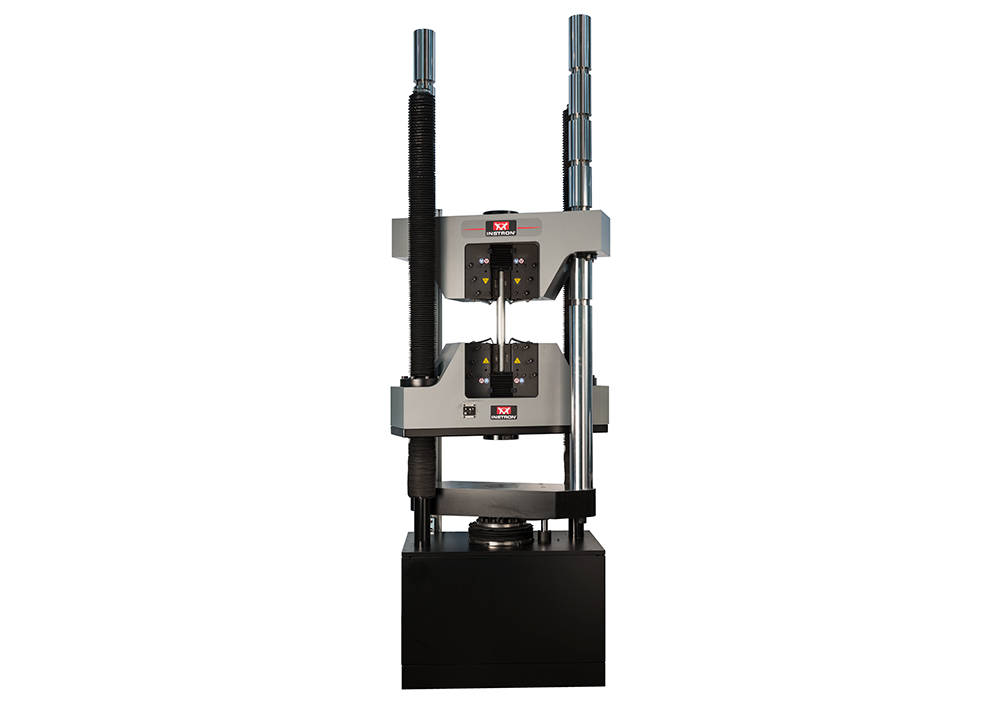

- 1000HDX - 1000 kN (220.000 lbf)
High Force Universal Testing Machines Brochure
Instron’s high force systems include electromechanical and high-capacity hydraulic testing systems for tension and compression applications. Force capacities range from 100 kN to 2000kN.
- Productos
- 08/10/2020
- 3.57 MB
Industrial Series HDX Models
Featuring a dual test space and long test stroke HDX Models are designed for high-capacity tension, compression, bend/flex, and shear testing.
- Productos
- 10/07/2013
- 210.4 KB
Bluehill Universal Brochure
Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability
- Productos
- 02/26/2017
- 3.77 MB
HDX Static Hydraulic Universal Testing System – Pre-Installation Manual
The information in this document is intended to aid customers in the site preparation, unpacking, lifting, and installation of the Instron Model HDX Static Hydraulic Universal Testing Systems. These instructions assume the following: • Your system consists of a frame, a hydraulic power supply, a control unit, a computer system with an Instron materials testing software package, and any testing accessories necessary to secure the specimen in the test space. It is important that the site be adequately prepared in order to avoid unnecessary delays in the installation process and to ensure that the testing system operates without interference from various environmental conditions (i.e. excess building vibrations or extreme temperature and humidity levels).
- Manual
- 07/20/2020
- 1 MB
HDX Static Hydraulic Universal Testing System – Operating Instructions
These instructions describe the function, operation and maintenance for various models of the HDX testing systems. If unsure of your specific model, refer to “System identification” on page 14. These instructions assume the following: • You are an operator familiar with the operation of materials testing systems in general. • Your system has been installed in its final location according to the requirements outlined in the system’s Pre-Installation Manual. • Your system consists of a frame, a hydraulic power supply, a control unit, a computer system with an Instron materials testing software package, and any testing accessories necessary to secure the specimen in the test space. • Software test methods that are appropriate for your testing requirements are available. These instructions do not include the development of test methods within the materials testing software. This is covered in more advanced training that can be provided by Instron Service and Training departments.
- Manual
- 07/20/2020
- 1.95 MB
HDX Static Hydraulic Universal Testing System – System Concepts Manual
These instructions provide additional information beyond what is necessary to operate the various models of the HDX testing systems. These instructions are intended for a laboratory or facilities supervisor, or Instron service personnel. These instructions assume the following: • You are an operator familiar with the operation of materials testing systems in general. • Your system has been installed in its final location according to the requirements outlined in the system’s Pre-Installation Manual. • Your system consists of a frame, a hydraulic power supply, a control unit, a computer system with an Instron materials testing software package, and any testing accessories necessary to secure the specimen in the test space. • Software test methods that are appropriate for your testing requirements are available. These instructions do not include the development of test methods within the materials testing software. This is covered in more advanced training that can be provided by Instron Service and Training departments.
- Manual
- 07/21/2020
- 1.75 MB
HDX Static Hydraulic Universal Testing System – Reference Manual
This Equipment Reference Manual has been prepared to provide customers with assembly drawings and schematics that pertain to the various models of HDX Static Hydraulic Universal Testing Systems.
- Manual
- 07/21/2020
- 1.57 MB
