This page lists electromechanical universal testing machines manufactured by Instron that are no longer in production, dating back to our founding in 1946. More than 75,000 of these systems have been installed around the world, including at 96% of the world’s largest manufacturing companies. Our records indicate that at least 30,000 of these systems are in active use as we have serviced them within the past year. Instron has a legacy of building systems that last for decades under demanding operating conditions. In fact, the average age of an Instron machine that we service is 18 years. Given proper preventative maintenance, the physical load frame will last an indefinite period of time, but older systems benefit greatly by upgrading to the latest operating software and/or a complete electrical retrofit. Use the tables below to find your system and see what upgrade options are available. Unfortunately, we are unable to retrofit some systems due to parts shortages or obsolescence, and in these cases your local sales engineer can offer you a generous trade in offer.
5900 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 5942 | 0.5 | 2 | 2010-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5943 | 1 | 2 | 2010-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5944 | 2 | 2 | 2010-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5965 | 5 | 2 | 2010-2020 | Bluehill Universal | Yes |
| 5966 | 10 | 2 | 2010-2020 | Bluehill Universal | Yes |
| 5967 | 30 | 2 | 2010-2020 | Bluehill Universal | Yes |
| 5969 | 50 | 2 | 2010-2020 | Bluehill Universal | Yes |
| 5982 | 100 | 2 | 2010-2022 | Bluehill Universal | Yes |
| 5984 | 150 | 2 | 2010-2022 | Bluehill Universal | Yes |
| 5985 | 250 | 2 | 2010-2022 | Bluehill Universal | Yes |
| 5988 | 400 | 1 | 2010-Present | Bluehill Universal | System in Production |
| 5989 | 600 | 1 | 2010-Present | Bluehill Universal | System in Production |
5500A Series
UPDATE:
5500A systems have moved to Phase 4 of Instron’s Product Life Cycle as of January 1, 2023.
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 5542A | 0.5 | 4 | 2009-2010 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5543A | 1 | 4 | 2009-2010 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5544A | 2 | 4 | 2009-2010 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5564A | 2 | 4 | 2009-2010 | Bluehill Universal | Yes |
| 5565A | 5 | 4 | 2009-2010 | Bluehill Universal | Yes |
| 5566A | 10 | 4 | 2009-2010 | Bluehill Universal | Yes |
| 5567A | 30 | 4 | 2009-2010 | Bluehill Universal | Yes |
| 5569A | 50 | 4 | 2009-2010 | Bluehill Universal | Yes |
3300 Series
UPDATE:
3300 systems have moved to Phase 3 of Instron’s Product Life Cycle as of January 1, 2026.
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 3342 | 0.5 | 3 | 2002-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 3343 | 1 | 3 | 2002-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 3344 | 2 | 3 | 2002-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 3345 | 5 | 3 | 2002-2020 | Bluehill Universal | Custom Retrofit or Trade-in |
| 3365 | 5 | 3 | 2002-2020 | Bluehill Universal | Yes |
| 3366 | 10 | 3 | 2002-2020 | Bluehill Universal | Yes |
| 3367 | 30 | 3 | 2002-2020 | Bluehill Universal | Yes |
| 3369 | 50 | 3 | 2002-2020 | Bluehill Universal | Yes |
| 3382 | 100 | 3 | 2002-2019 | Bluehill Universal | Yes |
| 3382A | 100 | 3 | 2019-2022 | Bluehill Universal | Yes |
| 3384 | 150 | 3 | 2002-2010 | Bluehill Universal | Yes |
| 3385H | 250 | 3 | 2002-2010 | Bluehill Universal | Yes |
5800 Series
UPDATE:
5800 systems have moved to Phase 4 of Instron’s Product Life Cycle as of January 1, 2023.
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 5842 | 0.5 | 4 | 2001-2009 | None | Custom Retrofit or Trade-in |
| 5843 | 1 | 4 | 2001-2009 | None | Custom Retrofit or Trade-in |
| 5848 | 2 | 4 | 2001-2009 | None | No (Trade-in Available) |
| 5864 | 2 | 4 | 2001-2009 | None | Yes |
| 5865 | 5 | 4 | 2001-2009 | None | Yes |
| 5866 | 10 | 4 | 2001-2009 | None | Yes |
| 5867 | 30 | 4 | 2001-2009 | None | Yes |
| 5869 | 50 | 4 | 2001-2009 | None | Yes |
| 5881 | 50 | 4 | 2001-2009 | None | Yes |
| 5882 | 100 | 4 | 2001-2009 | None | Yes |
| 5884 | 150 | 4 | 2001-2009 | None | Yes |
| 5885 | 200 | 4 | 2001-2009 | None | Yes |
| 5885H | 250 | 4 | 2001-2009 | None | Yes |
| 5889 | 600 | 4 | 2001-2009 | None | No (Trade-in Available) |
5500 Series
UPDATE:
5500 systems have moved to Phase 4 of Instron’s Product Life Cycle as of January 1, 2023.
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| mini-55 | 0.5 | 4 | 1993-1999 | Bluehill Universal | No (Trade-in Available) |
| 5542 | 0.5 | 4 | 1993-2008 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5543 | 1 | 4 | 1993-2008 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5544 | 2 | 4 | 1993-2008 | Bluehill Universal | Custom Retrofit or Trade-in |
| 5548 | 5 | 4 | 1993-2008 | Bluehill Universal | No (Trade-in Available) |
| 5564 | 2 | 4 | 1993-2008 | Bluehill Universal | Yes |
| 5565 | 5 | 4 | 1993-2008 | Bluehill Universal | Yes |
| 5566 | 10 | 4 | 1993-2008 | Bluehill Universal | Yes |
| 5567 | 30 | 4 | 1993-2008 | Bluehill Universal | Yes |
| 5568 | 50 | 4 | 1993-1995 | None | No (Trade-in Available) |
| 5569 | 50 | 4 | 1993-2008 | Bluehill Universal | Yes |
| 5581 | 50 | 4 | 1996-2010 | Bluehill Universal | Yes |
| 5582 | 100 | 4 | 1996-2010 | Bluehill Universal | Yes |
| 5583 | 150 | 4 | 1996-2010 | Bluehill Universal | No (Trade-in Available) |
| 5584 | 150 | 4 | 1996-2010 | Bluehill Universal | Yes |
| 5585 | 200 | 4 | 1996-2010 | Bluehill Universal | Yes |
| 5585H | 250 | 4 | 1996-2010 | Bluehill Universal | Yes |
MT MicroTorsion Series Torsion Testers
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest control electronics, software, and features. |
|---|---|---|---|---|---|
| MT1 | 200 lbf-in 22.5 N-m |
2 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
| MT2 | 2,000 lbf-in 225 N-m |
2 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
| MT5 | 5,000 lbf-in 565 N-m |
3 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
| MT10 | 10,000 lbf-in 1,130 N-m |
3 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
| MT20 | 20,000 lbf-in 2,260 N-m |
3 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
| MT30 | 30,000 lbf-in 3,390 N-m |
3 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
| MT50 | 50,000 lbf-in 5,650 N-m |
3 | Varies by Controller 5900 Controller 2013-2025 I-Series Controller 2009-2013 5500 Controller 2000-2009 |
Bluehill Universal | Varies by Controller 5500 and I-Series controllers can be retrofitted to the 5900 controller. Current 5900 controllers cannot be retrofitted. |
SF Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest control electronics, software, and features. |
|---|---|---|---|---|---|
| SF601 | 500 N | 4 | 2004-2014 | Bluehill Universal | Custom Retrofit or Trade-in |
| SF602 | 2 kN | 4 | 2004-2014 | Bluehill Universal | Custom Retrofit or Trade-in |
| SF1241 | 5 kN | 3 | 2004-2011 | Bluehill Universal | Custom Retrofit or Trade-in |
| SF1242 | 10 kN | 3 | 2004-2011 | Bluehill Universal | Custom Retrofit or Trade-in |
| SF1243 | 25 kN | 3 | 2004-2011 | Bluehill Universal | Custom Retrofit or Trade-in |
| SF391 | 50 kN | 4 | 2007-2014 | Bluehill Universal | Custom Retrofit or Trade-in |
| SF392 | 100 kN | 4 | 2007-2014 | Bluehill Universal | Custom Retrofit or Trade-in |
4400 Series
UPDATE:
4400 systems have moved to Phase 4 of Instron’s Product Life Cycle as of January 1, 2023.
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| mini-44 | 0.5 | 4 | 1993-1999 | None | No (Trade-in Available) |
| 4411 | 5 | 4 | 1993-1998 | None | No (Trade-in Available) |
| 4442 | 0.5 | 4 | 1993-2002 | None | Custom Retrofit or Trade-in |
| 4443 | 1 | 4 | 1993-2002 | None | Custom Retrofit or Trade-in |
| 4444 | 2 | 4 | 1993-2002 | None | Custom Retrofit or Trade-in |
| 4464 | 2 | 4 | 1993-2002 | None | Yes |
| 4465 | 5 | 4 | 1993-2002 | None | Yes |
| 4466 | 10 | 4 | 1993-2002 | None | Yes |
| 4467 | 30 | 4 | 1993-2002 | None | Yes |
| 4468 | 50 | 4 | 1993-2002 | None | Yes |
| 4469 | 50 | 4 | 1993-2002 | None | Yes |
| 4481 | 50 | 4 | 1993-2002 | None | Yes |
| 4482 | 100 | 4 | 1993-2002 | None | Yes |
| 4483 | 150 | 4 | 1993-2002 | None | No (Trade-in Available) |
| 4484 | 150 | 4 | 1993-2002 | None | Yes |
| 4485 | 200 | 4 | 1993-2002 | None | Yes |
| 4487 | 300 | 4 | 1993-2002 | None | No (Trade-in Available) |
| 4488/9 | 600 | 4 | 1993-2002 | None | No (Trade-in Available) |

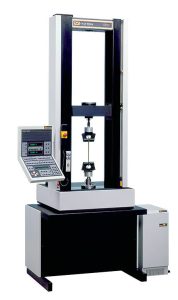

4500 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 4501 | 5 | 4 | 1986-1994 | None | No (Trade-in Available) |
| 4502 | 10 | 4 | 1986-1994 | None | No (Trade-in Available) |
| 4505 | 100 | 4 | 1986-1994 | None | No (Trade-in Available) |
| 4507 | 200 | 4 | 1986-1994 | None | No (Trade-in Available) |
| 4508 | 300 | 4 | 1986-1994 | None | No (Trade-in Available) |
| 4510 | 600 | 4 | 1986-1994 | None | No (Trade-in Available) |
Life Cycle Notice Letter: Instron 4500 Series in Phase 4 – Discontinued Product

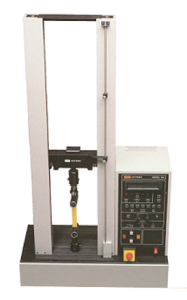

1011 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1011 | 5 | 4 | 1987-1994 | None | No (Trade-in Available) |

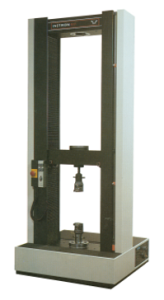

6000 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 6021 | 5 | 4 | 1985-1989 | None | No (Trade-in Available) |
| 6022 | 10 | 4 | 1985-1989 | None | No (Trade-in Available) |
| 6025 | 100 | 4 | 1985-1989 | None | No (Trade-in Available) |
| 6027 | 200 | 4 | 1985-1989 | None | No (Trade-in Available) |
4300 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 4301 | 5 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4302 | 10 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4303 | 25 | 4 | 1983-1993 | None | No (Trade-in Available) |
Life Cycle Notice Letter: Instron 4300 Series in Phase 4 – Discontinued Product
4200 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 4201 | 5 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4202 | 10 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4204 | 50 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4206 | 150 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4208 | 300 | 4 | 1983-1993 | None | No (Trade-in Available) |
| 4210 | 600 | 4 | 1983-1993 | None | No (Trade-in Available) |
Life Cycle Notice Letter: Instron 4200 Series in Phase 4 – Discontinued Product

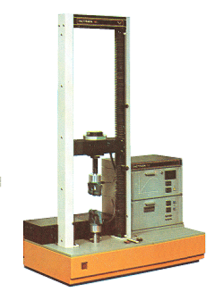

1160 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1161 | 5 | 4 | 1976-1982 | None | No (Trade-in Available) |
| 1162 | 5 | 4 | 1980-1986 | None | No (Trade-in Available) |

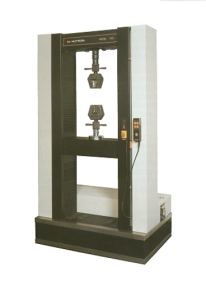

1170 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1175 | 100 | 4 | 1980-1986 | None | No (Trade-in Available) |

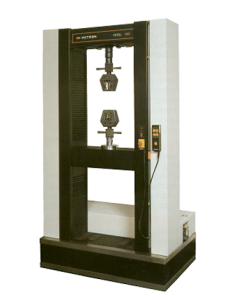

1180 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1185 | 100 | 4 | 1978-1986 | None | No (Trade-in Available) |
| 1186 | 200 | 4 | 1978-1986 | None | No (Trade-in Available) |

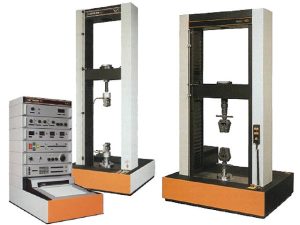

1120 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1121 | 10 | 4 | 1974-1987 | None | No (Trade-in Available) |
| 1122 | 5 | 4 | 1974-1987 | None | No (Trade-in Available) |
| 1123 | 25 | 4 | 1974-1987 | None | No (Trade-in Available) |
| 1125 | 100 | 4 | 1974-1987 | None | No (Trade-in Available) |
| 1127 | 200 | 4 | 1974-1987 | None | No (Trade-in Available) |
| 1128 | 300 | 4 | 1974-1987 | None | No (Trade-in Available) |

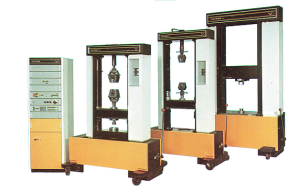

1190 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1193 | 25 | 4 | 1972-1983 | None | No (Trade-in Available) |
| 1195 | 100 | 4 | 1972-1983 | None | No (Trade-in Available) |
| 1196 | 250 | 4 | 1972-1983 | None | No (Trade-in Available) |
| 1197 | 500 | 4 | 1972-1983 | None | No (Trade-in Available) |
| 1199 | 100 | 4 | 1972-1983 | None | No (Trade-in Available) |
1130 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1130 | 2 | 4 | 1969-1983 | None | No (Trade-in Available) |
| 1131 | 5 | 4 | 1969-1983 | None | No (Trade-in Available) |
| 1132 | 10 | 4 | 1969-1983 | None | No (Trade-in Available) |
| 1133 | 25 | 4 | 1969-1983 | None | No (Trade-in Available) |
| 1134 | 50 | 4 | 1969-1983 | None | No (Trade-in Available) |
| 1135 | 100 | 4 | 1969-1983 | None | No (Trade-in Available) |
| 1137 | 200 | 4 | 1972-1987 | None | No (Trade-in Available) |

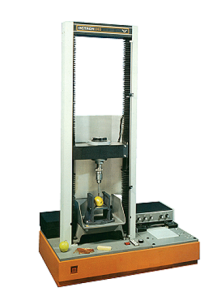

1026 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1026 | 5 | 4 | 1968-1983 | None | No (Trade-in Available) |
| 1140 | -5 | 4 | 1968-1983 | None | No (Trade-in Available) |
1110 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1111 | 1 | 4 | 1962-1975 | None | No (Trade-in Available) |
| 1112 | 5 | 4 | 1962-1975 | None | No (Trade-in Available) |
| 1113 | 25 | 4 | 1962-1975 | None | No (Trade-in Available) |
| 1114 | 50 | 4 | 1962-1975 | None | No (Trade-in Available) |
| 1115 | 100 | 4 | 1962-1975 | None | No (Trade-in Available) |
| 1116-TTKE | 245 | 4 | 1962-1975 | None | No (Trade-in Available) |
| 1126-TTKH | 245 | 4 | 1962-1975 | None | No (Trade-in Available) |
1100 Series
| Model Name | Capacity (kN) | Support Phase Phase 1 – Systems are in full production and tech support, parts, and software are available. Phase 2 – Systems are no longer manufactured. Tech support, service, parts and software are available. Phase 3 – Systems are no longer manufactured. Service is available, but parts and software may be limited. Phase 4 – Systems are no longer manufactured. Service or parts are not available. Read more for full details. |
Manufacturing Period | Software Upgrade Available This is the latest version of software that is capable of operating this system. Contact sales to discuss a software upgrade for your system. | System Retrofit Available Instron System Retrofits extend the life of your Instron® testing system by replacing at-risk components and upgrading your system with the latest 3400 or 6800 control electronics, software, and features. Click here to learn more |
|---|---|---|---|---|---|
| 1101-TM | 1 | 4 | 1948-1964 | None | No (Trade-in Available) |
| 1102-TMS | 5 | 4 | 1948-1964 | None | No (Trade-in Available) |
| 1103-TTB | 25 | 4 | 1948-1964 | None | No (Trade-in Available) |
| 1104-TTC | 50 | 4 | 1948-1964 | None | No (Trade-in Available) |
| 1105-TTD | 100 | 4 | 1948-1964 | None | No (Trade-in Available) |
