ASTM F2606 Three-Point Bending Balloon Expandable Vascular Stents and Stent Systems

ASTM F2606 stent testing

ASTM F2606 is a testing standard that specifically focuses on characterizing the flexibility of balloon expandable vascular stents and entire stent systems. Balloon expandable vascular stents are critical medical devices used in angioplasty procedures, which typically involve placing a stent in a blocked or damaged artery in order to support the artery and prevent it from clogging over time. These procedures can prevent serious vascular diseases and improve the patient’s quality of life.

During deployment of the device and while in-vivo, vascular stents are under constant flexural, compressive, and torsional forces. Any failure of the device could be extremely dangerous for the patient and result in puncturing the vascular wall.

Materials Testing System

ASTM F2606 uses a materials testing system with a three-point bending fixture to quantify the flexibility of both deployed stents and pre-deployment stent systems. The test can ascertain both the flexural stiffness and conformability of these devices, which is critical in understanding their behavior when placed within the body. Due to the low forces involved, we recommend a 6800 Series testing system with a 100N load cell and a custom flexural fixture designed to meet the specifications of the standard.

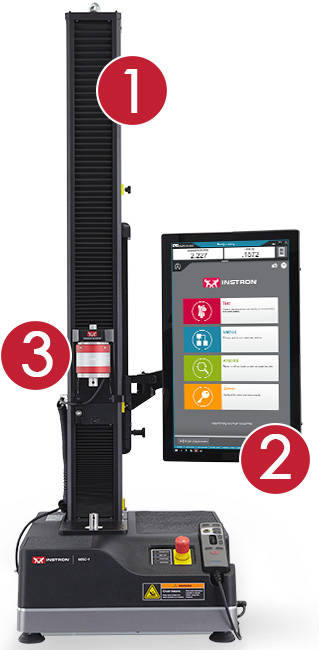

ASTM F2606 Test Setup
1) 6800 Series Universal Testing System
2) Bluehill Universal Software
3) 2580 Series Load Cell


ASTM F2606 stent testing

Tips and Tricks

For the most accurate results, ASTM F2606 testing should be performed at average body temperature, 37 degrees Celsius. Consider using Instron's BioBox or BioBath, which create testing environments designed to mimic internal body temperatures and conditions.

Related Content

6800 Series Premier Testing Systems Brochure

Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.

Bluehill Universal Brochure

Bluehill Universal Software is built from the ground-up for touch interaction and an intuitive user experience. Discover simpler and smarter testing with features such as pre-loaded test methods, QuickTest in seconds, enhanced data exporting: and Instron Connect – a new feature that provides a direct communication link to Service. Users of previous versions of software such as Bluehill 2 and Bluehill 3 can easily upgrade to the newest version of Bluehill.

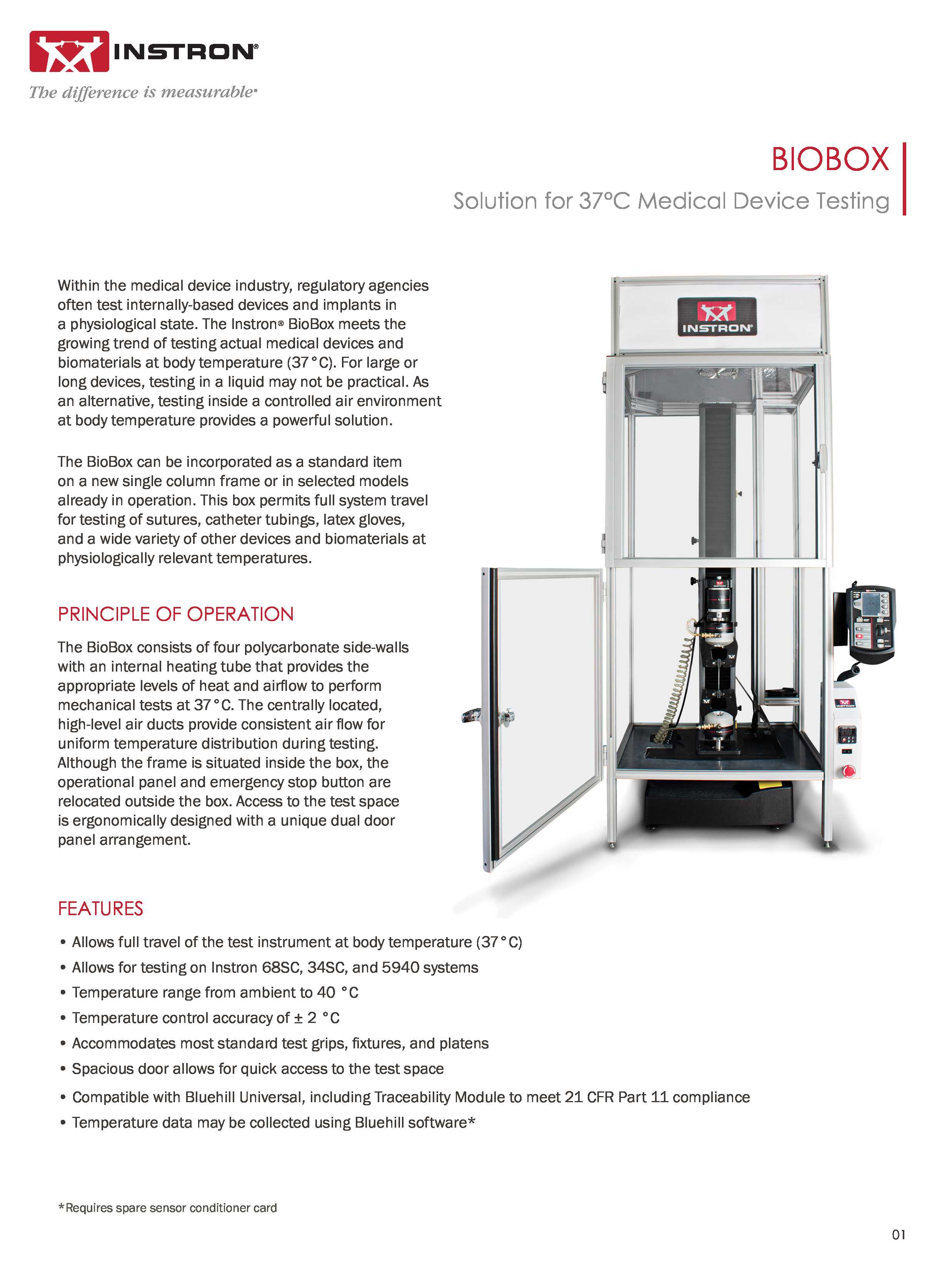

BioBox for 37°C Medical Device Testing

Instron's BioBox provides a controlled air environment at body temperature (37°C) for convenient testing of medical devices and biomaterials.

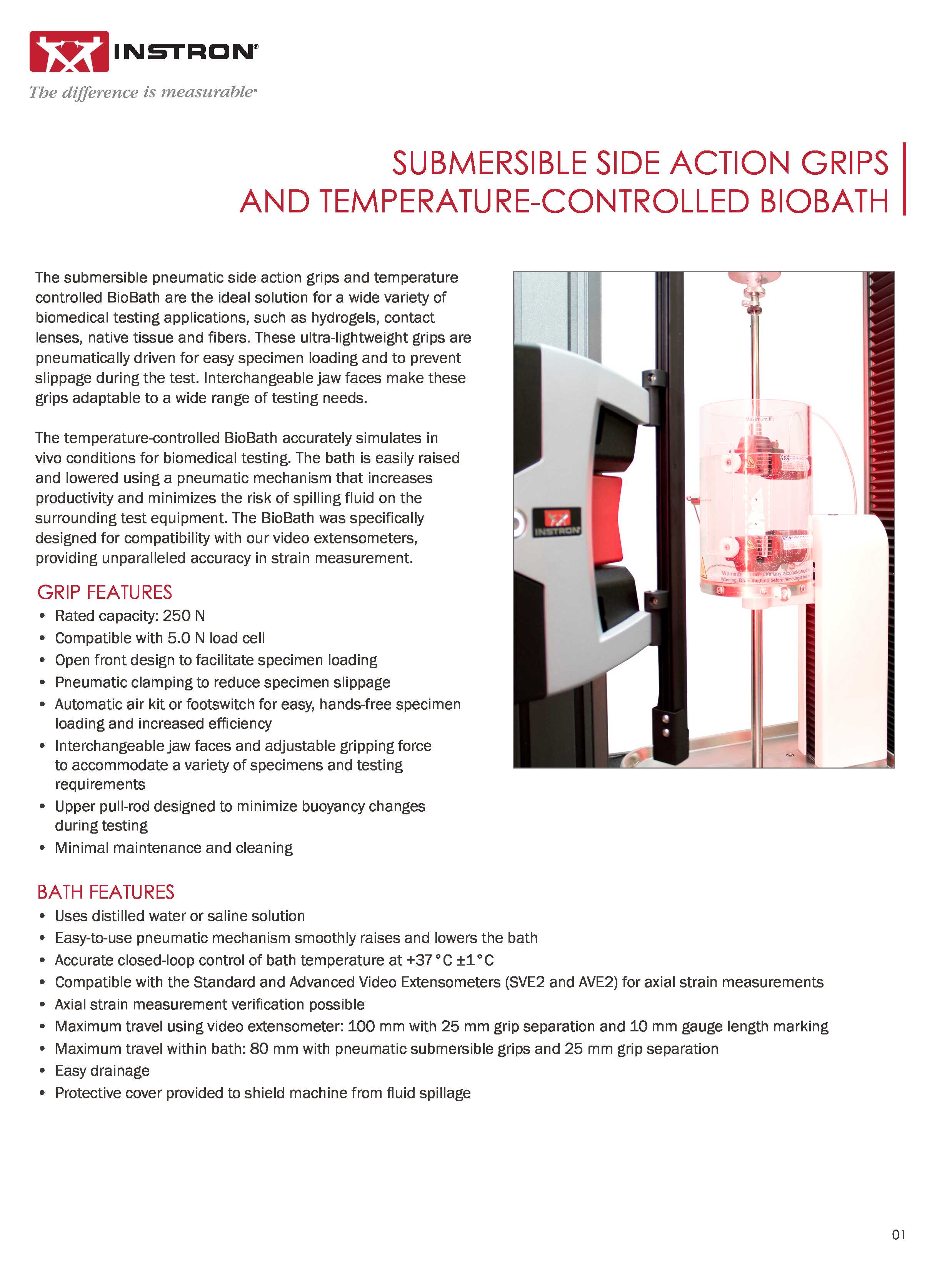

Submersible Side Action Pneumatic Grips and Temperature-Controlled BioBath
