Labtronic EVO®
Because decisions for the future are made today
Labtronic EVO is a modular, scalable controller solution designed for modern servohydraulic applications and test systems, combining flexibility, performance, and future-proof upgradeability. Built on a distributed architecture, it replaces traditional centralized systems to reduce cabling, improve signal quality, and simplify installation.

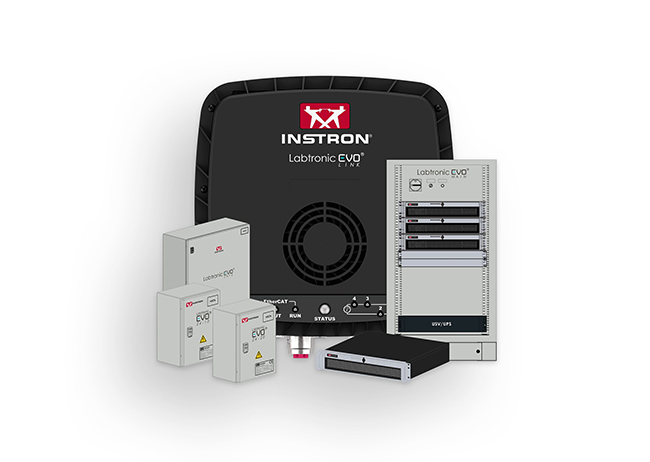

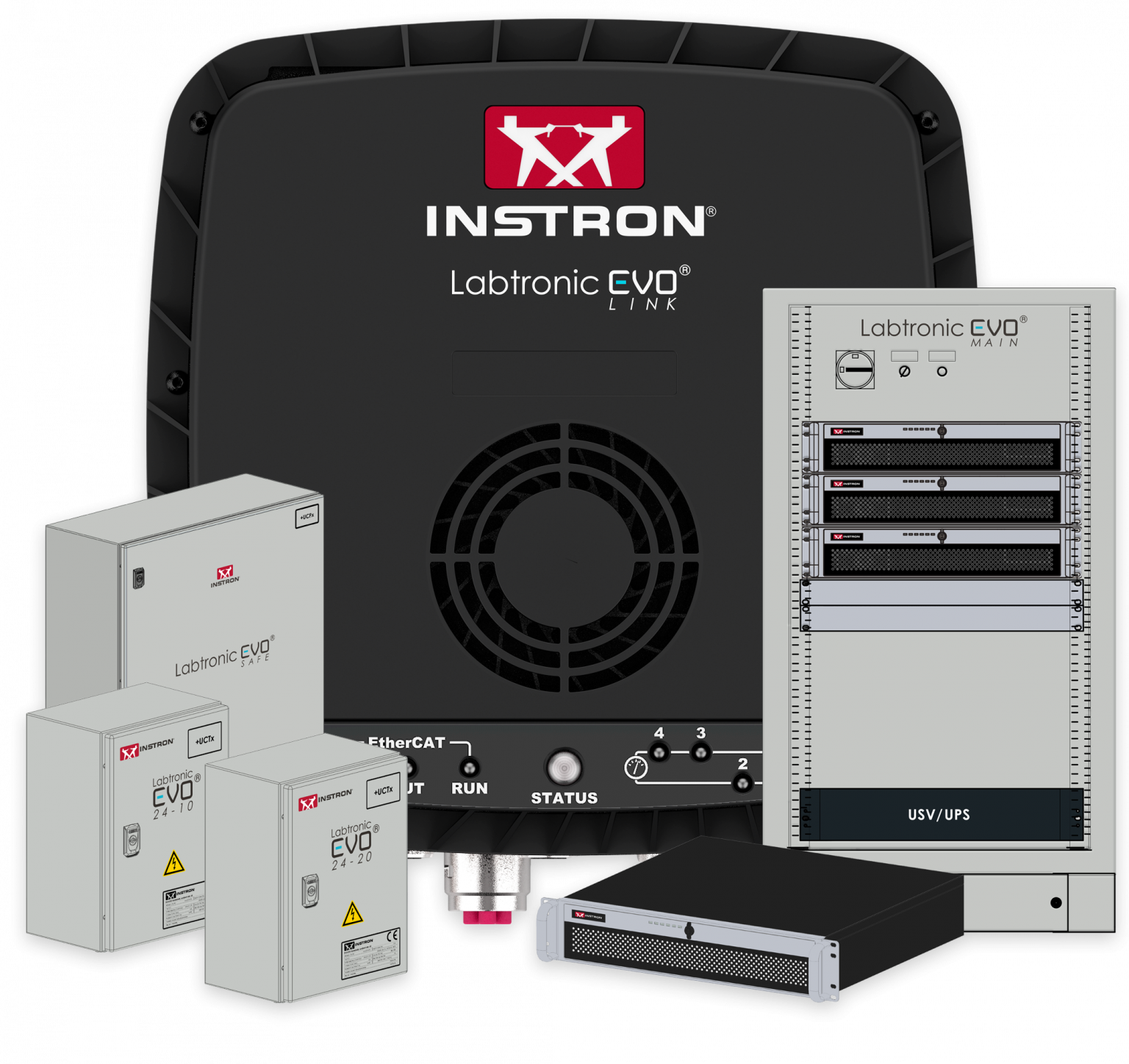

The platform consists of five integrated components:
- Labtronic EVO CORE (real-time control with EtherCAT connectivity)
- Labtronic EVO MAIN (protected housing)
- Labtronic EVO 24-10 / 24-20 (24 V power distribution with I/O and network extension)

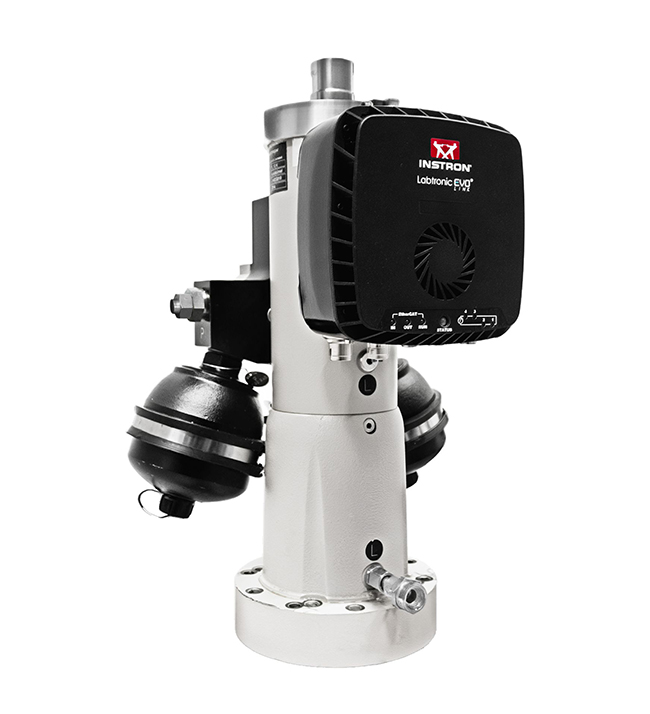

- Labtronic EVO LINK (decentralized actuator-level measurement and valve control with CAN bus)
- Labtronic EVO SAFE (ISO 13849-1/2 compliant safety system)
With electronics placed close to actuators, Labtronic EVO enables shorter analog paths, faster setup, and reduced downtime of up to 80% in certain configurations. Backward compatibility and stepwise upgrade options allow seamless integration into existing test rigs, making it a powerful platform for new installations and modernization projects.
If you would like to find out more about the Labtronic EVO, Instron recommends downloading the product brochure.
Key Features
- Modular architecture enabling scalable and flexible test system design
- Decentralized system design with actuator-level integration via EVO LINK for shorter analog signal paths
- High-speed EtherCAT communication (10 kHz) for deterministic real-time control and low-latency data exchange
- Integrated multi-function EVO LINK module with measurement amplifiers, valve control, and CAN bus interfaces (CAN 2.0 A/B, CAN FD)
- Hybrid cabling and daisy-chain connectivity supporting up to eight EVO LINK modules for simplified installation
- Stepwise upgrade capability and backward compatibility with Labtronic® 8800ml systems for hybrid operation
- Advanced safety system (EVO SAFE) compliant with ISO 13849-1/2 Performance Level d
Benefits of Use
- Up to 80% reduction in test setup time, significantly lowering downtime and increasing test efficiency
- Reduced cabling complexity and faster installation due to decentralized electronics and EtherCAT topology
- Improved signal quality and noise immunity from shorter analog cable lengths near actuators
- Flexible, future-proof system upgrades that protect existing investments and allow incremental modernization
- Minimal disruption during retrofits, as components can be installed alongside existing systems
- Faster commissioning and maintenance through hybrid connectors and simplified system architecture
- Lower training requirements thanks to familiar software environments (RSLabSite® 2.n) and backward compatibility
|
Labtronic 8800ml
|
Labtronic EVO
|
|
| Real-time performance with EtherCAT (10 kHz) | ||
| Support for CAN bus integration | ||
| Uses RSLabSite 2.n | ||
| Decentralized architecture design | ||
| Significantly reduced cabling and setup time | ||
| Stepwise upgrade and hybrid compatibility | ||
| Integrated standardized safety system |
If you would like to find out more about the Labtronic EVO, Instron recommends reading the interview featuring its Inovation Manager responsible for the development of the product family.
FAQ
Labtronic EVO is a modular, scalable test system for servohydraulic applications that simplifies test rig electronics, reduces cabling, and enables fast upgrades. It combines decentralized architecture, modern bus technology (EtherCAT), and backward compatibility to create a flexible platform for new installations and retrofits.
