EN 2561:1995 Carbon Fiber Reinforced Plastics — Unidirectional Laminates — Tensile Test Parallel to the Fiber Direction

wind farm and composites test


EN 2561 is a testing standard that determines the ultimate tensile strength, tensile modulus and, if required, the Poisson’s ratio and strain at failure in tension of carbon fiber reinforced plastics in the form of unidirectional laminates. This method is only applicable to specimens where the axis is parallel to the direction of the fibers; testing in the perpendicular is covered by the test methods in EN 2597. This standard is used by a range of manufacturers using carbon fiber laminates including those in the aerospace, automotive, wind energy, and construction industries. EN 2561 is typically used for materials development and qualification and quality control.

Materials Testing System

For testing high strength carbon fiber materials, Instron recommends a 6800 Series electromechanical floor model testing system. For lower strength materials such as glass fiber, a table model 6800 Series system may have sufficient capacity. Moving body grips meet the requirements of the standard and both manually and hydraulically operated types are available.


EN 2561 Test Setup
 6800 Series Universal Testing System
 Bluehill Universal Software
 2580 Series Load Cell
 2742 Series Hydraulic Wedge Grips
 AVE2 Non-Contacting Extensometer
composite testing system EN 2561
Testing Accessories

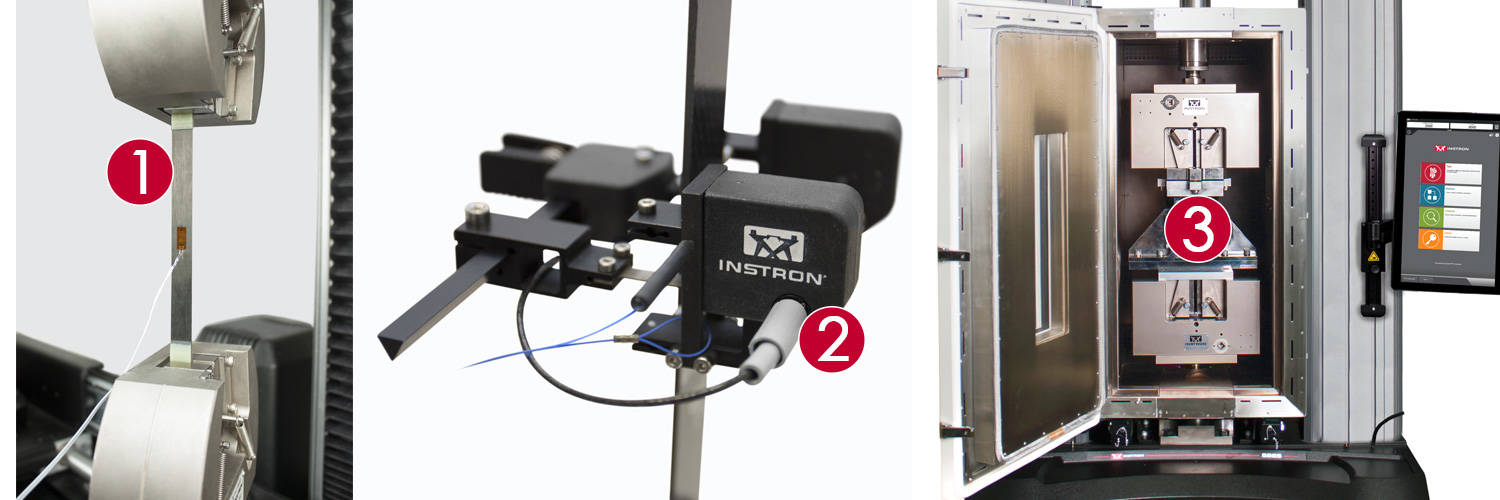

Strain measurement is a key part of testing to EN 2561. Strain measurement devices include simple strain gauges and a wide range of extensometers. Strain gauges can be connected to the testing machine via easy-to-use strain gauge adapters. A range of suitable contacting extensometers for axial and bi-axial strain measurements are also available. When strain at failure is required, a non-contacting strain measurement solution such as Instron's AVE2 is preferred. When tests need to be conducted at high or low temperatures a temperature chamber along with temperature-rated grips is required.


EN 2561 Testing Accessories
 Strain Gauge
 Biaxial Clip-On Extensometer
 Environmental Chamber

composites testing accessories

Related Content

6800 Series Premier Testing Systems Brochure

Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.

Composites Testing Brochure

Instron’s universal testing machines are designed to perform the most common types of testing used in the composites industry, including but not limited to in-plane tensile, through thickness tensile, interlaminar shear, compression in end, shear, or combined loading, and compression after impact.

Bluehill Universal Brochure

Bluehill Universal Software is built from the ground-up for touch interaction and an intuitive user experience. Discover simpler and smarter testing with features such as pre-loaded test methods, QuickTest in seconds, enhanced data exporting: and Instron Connect – a new feature that provides a direct communication link to Service. Users of previous versions of software such as Bluehill 2 and Bluehill 3 can easily upgrade to the newest version of Bluehill.

AVE 2 Non-Contacting Video Extensometer

The second generation Advanced Video Extensometer (AVE 2) utilizes patented measurement technology in the fastest, most accurate non-contacting strain measurement device commercially available.

2630 Series Strain Gauge Extensometers

The 2630-100 series of extensometers offers speed of attachment and ease-of-use. The light-weight, rugged cross-brace design eliminates errors caused by physical distortion, while built-in protection ensures that damage is not caused by over-extension.

3119-600 Series Environmental Chambers

The 3119-600 Series Environmental Chamber allows labs to perform safe and efficient testing at a wide range of non-ambient temperatures.
