Structural Durability Solutions
Instron's Structural Durability Solutions provide a full range of systems for static, quasi-static, and dynamic testing of components, subsystems, and full vehicles. From axle test rigs and component test systems to multi-axis shaking tables, road simulators, shock absorber stands, and full-vehicle durability platforms, these solutions replicate real-world loads with precision and repeatability. Designed for demanding automotive and transportation applications, each system supports accelerated development, improved reliability, and efficient laboratory operation through advanced servohydraulic technology and configurable test architectures.
Instron's full vehicle test systems evaluate complete vehicle structures under realistic multi-channel load inputs — accelerating durability testing programs that would otherwise require extensive proving ground time. Available with and without vehicle restraint, with long- or short-stroke lateral force introduction, and with optional environmental simulation capability covering temperature, humidity, and solar loading for comprehensive vehicle validation.

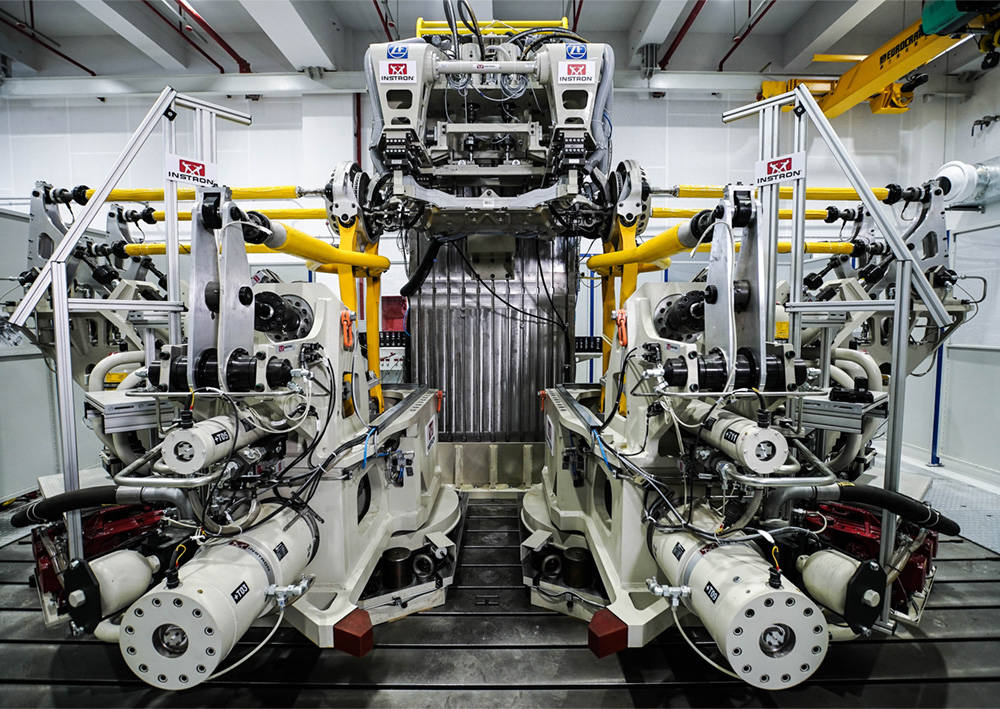

Axle test rigs reproduce the complex multi-directional loads applied to axle elements as a vehicle travels over a variety of road surfaces — enabling realistic fatigue and durability testing in a controlled laboratory environment. Instron provides axle test systems for car, van, truck, and bus axles with six degrees of freedom, supporting both development testing and end-of-line validation programs.

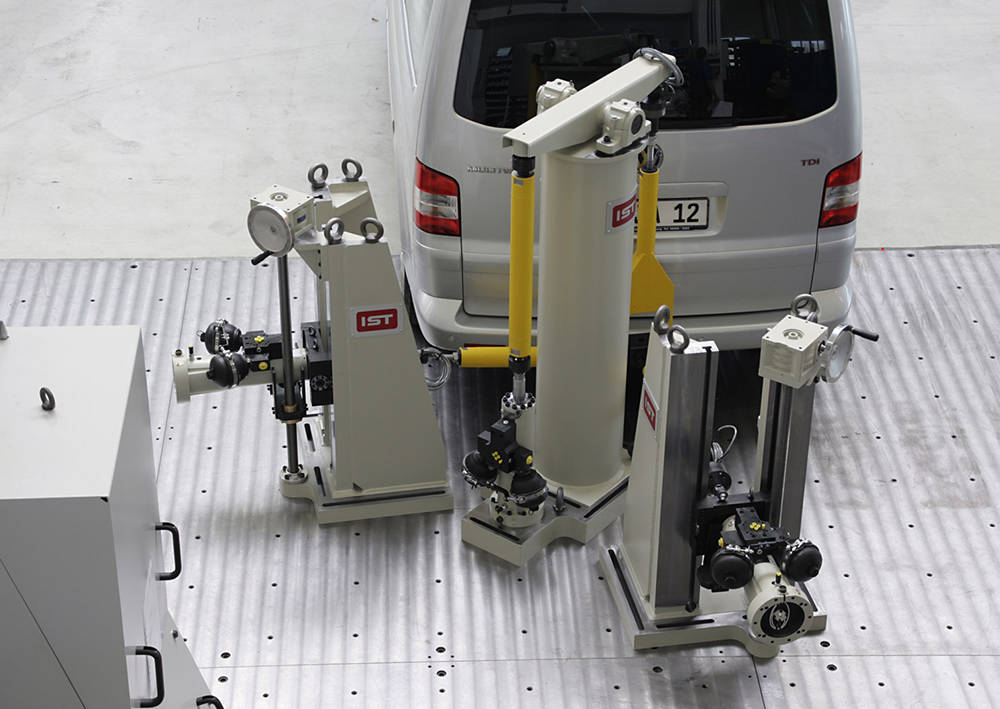

Instron's component test systems provide a reliable, high-productivity solution for durability and performance testing of individual vehicle components and subassemblies. Built on the modular Hydropuls® product line, these systems can be configured for a wide range of load types, specimen geometries, and test standards — and extended or reconfigured as testing requirements evolve.
The dynamic torsion test stand is designed for operational fatigue testing of torsional vibration dampers under rotational speed — replicating the dynamic torsional loads these components experience in real-world powertrain operation. This enables accurate characterization of damper behavior and fatigue life under representative service conditions.

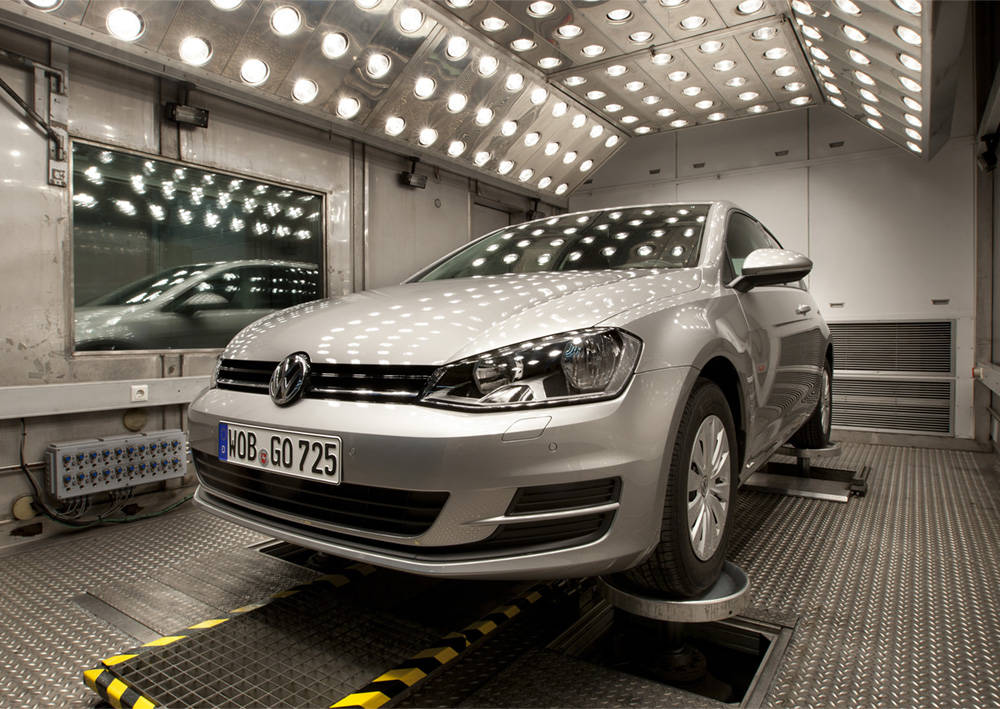

Hydropuls® road simulators provide a versatile and cost-effective solution for applying realistic road load inputs through the vehicle's tires — enabling durability testing, acoustic analysis, and vibration evaluation (BSR and NVH) on complete vehicles, subsystems, and powertrain assemblies. By reproducing measured road load data in the laboratory, road simulators significantly reduce the time and cost associated with proving ground testing while maintaining a high degree of correlation with real-world results.
Multi-axis simulation (MAST) tables are designed for six-degree-of-freedom vibration testing of components and subassemblies exposed to dynamic loads during vehicle operation. Applications include seats, dashboards, interior equipment, engine mounts, cooling modules, and other assemblies where vibratory loading influences performance, durability, or occupant comfort. MAST testing enables accurate laboratory replication of the complex, multi-directional vibration environments experienced in service.

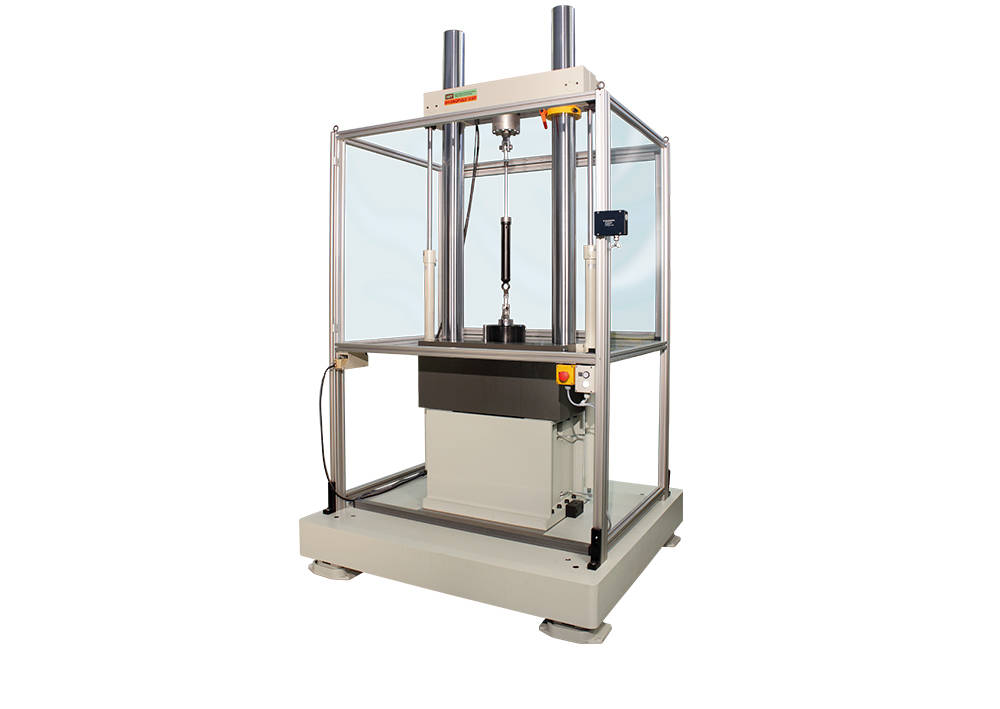

Instron's MSP shock absorber test system is a dedicated platform for the development, tuning, and validation of vehicle chassis and damper systems. Designed for reliable, fast, and realistic test operation, the MSP enables engineers to characterize shock absorber behavior across a wide range of operating conditions — supporting both the development of new damper designs and the quality control of production components.
Talk to an Instron Expert.
Instron's structural durability solutions are customized to the specific requirements of each test program and laboratory environment. Whether you are developing a new test facility or expanding an existing one, our team in Darmstadt has the applications expertise to help you design the right solution.
