Literatur
Bibliothek mit Druckschriften, Handbüchern, Whitepapers & Fallstudien
Rheology Systems Melt Flow Tester CEAST MF50
The Instron® CEAST MF50 multi-weight Melt Flow Tester performs melt flow rate (melt index) tests according to MFR and MVR methods that fully comply with ASTM D1238 procedures A, B, C, D, and ISO 1133 A and B, for single weight and multiple weight tests .
Multi-weight tests can include up to 5 masses in increasing, decreasing or free sequence, with fully customizable preheating and measurement steps. All masses are pre-installed and managed by the machine without operator intervention, eliminating all safety concerns. A high-resolution direct-contact encoder measures piston displacement. The temperature profile in the barrel is extremely stable and accurate. Additional advanced features include a large touch-screen display for full test programming, management and diagnostic functions, with an embedded PC based on Windows CE, able to store test methods and test results. Easy data export through USB and Ethernet ports. Compacting and purging functions can be supported by the unique load cell feature. Automatic melt cutting and barell cleaning accessories are also available.
Produkte 09/11/2013 605.71 KB
Component Test Plate
The Component Test Plate is designed to accommodate the trend of testing end products or components. Within the medical device industry, many test requirements are focusing on the actual quality and test performance of the end product in addition to the standard test requirements of the materials from which it is constructed. The Component Test Plate is used to determine the force limits in particular functional elements of products ranging from catheter delivery systems to buttons on diagnostic test instruments. Once oriented, the test component can be easily fixed to the base through the array of tapped holes. A force applicator (probe, hook, or clamp) can then be attached to the load cell. The combination of a fixed component and test force applicator generates valuable results for either quality or research and development groups. Additionally, the Component Test Plate simplifies the process of adapting custom-made grips and fixtures to the testing systems.
Produkte 08/28/2013 851.64 KB
Automatic Contacting Extensometer – Model AutoX 750
The AutoX 750 is a high-resolution, long-travel automatic contacting extensometer. It can be mounted onto any electromechanical 3300, 3400, 5500, 5900, or 6800 Series tabletop or floor model system as well as LX, DX, HDX, and KPX static hydraulic testing systems. It is well suited for applications involving plastics, metals, biomedical, composites, elastomers, and more. The AutoX has a maximum travel of 750 mm and accuracy of ± 1 µm.
Produkte 08/15/2013 1.29 MB
2714 Series Pneumatic Tire Cord Grips 2714010CP108524
The Instron® pneumatic tire cord grips provide a convenient method for clamping tire cord and braided wire during testing. A guide pin allows for easy loading onto a graduated radius cam, which provides a stress-reduced clamping area on the specimen. The clamping mechanism can be activated either automatically or through a footswitch, which allows for hands-free grip operation enabling the specimen to be held with both hands for easy loading. Pneumatic cord and yarn grips provide selectable clamping force to accommodate different materials and excellent follow-up action that compensates for decay of the holding force due to specimen creep.
Produkte 08/14/2013 529890
Pneumatic Tire Cord Grips (CP105953)
The Instron® pneumatic tire cord grips provide a convenient method for clamping tire cord and braided wire during testing.
Produkte 08/14/2013 599.82 KB
CEAST Melt Flow Series Brochure
Flow properties of molten plastics are a critical characteristic requiring good knowledge and control. The Instron® Melt Flow Testers are specifically designed for easy
and accurate measuring of the Melt Mass-Flow Rate (MFR) and the Melt Volume-Flow Rate (MVR). CEAST Melt Flow Testers range from systems that perform a simple
manual test procedure to semi-automated testing systems performing multiple weight tests.
Produkte 07/03/2013 1.07 MB
MicroTorsion Series: Low-Capacity Torsion Testing Systems
The preferred solution for low-force torsion testing and component in-service simulation, the MT MicroTorsion systems are available in two standard models with force capacities up to 225 N-m (2,000 lbf-in). The compact design requires minimal lab space and offers superior frame stiffness and alignment. Packaged with Instron high-performance control electronics, the MT Series provides highly accurate test data and control for testing a product portfolio that includes wire, fasteners, switches, and springs used in the biomedical, automotive, and aerospace industries. The system includes an integrated guard and safety control system that meets the stringent requirements for the European CE mark.
Produkte 06/12/2013 567391
Pneumatic Cord and Yarn Grips | Catalog Number 2714-031
Instron’s pneumatic cord and yarn grips provide a convenient method for clamping fiber, cord, yarns and fine wires to reduce the problem associated with testing these materials.
Produkte 06/11/2013 490.84 KB
2630 Series Strain Gauge Extensometers
The 2630-100 series of extensometers offers speed of attachment and ease-of-use. The light-weight, rugged cross-brace design eliminates errors caused by physical distortion, while built-in protection ensures that damage is not caused by over-extension.
Produkte 06/03/2013 551.73 KB

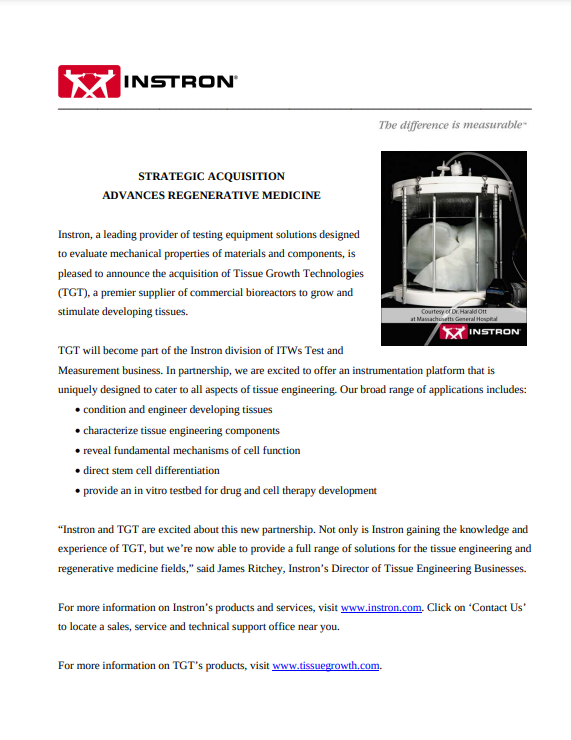

Strategic Acquisition Expands Product Line
Tissue Growth Technologies (TGT) will become a part of ITW’s Test and Measurement business, strengthening and expanding the Instron product line.
Press Releases 05/24/2013 58.12 KB
